MS10B23S

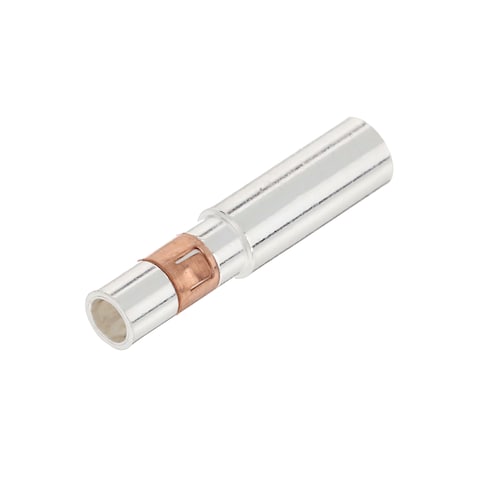

Name: Amphenol MS10B23S
Brand: Amphenol SINE Systems
SKU: 654-MS10B23S
Price: 2.01 USD
Availability: InStock

Images are for reference only
See Product Specifications

Mouser No:

654-MS10B23S

Mfr. No:

MS10B23S

Mfr.:

Amphenol SINE Systems

Description:

Heavy Duty Power Connectors SOCKET CONTACT 2.5MM SILVER PLATED

Datasheet:

MS10B23S Datasheet (PDF)

ECAD Model:

Download the free Library Loader to convert this file for your ECAD Tool. Learn more about the ECAD Model.

More Information

Learn more about Amphenol SINE Systems MS10B23S

In Stock: 643

Stock:: 643 Can Dispatch Immediately

An unexpected error occurred. Please try again later.
Factory Lead Time:: 17 Weeks Estimated factory production time for quantities greater than shown.

Enter Quantity:

Minimum: 1 Multiples: 1

Unit Price:

$-.--

Ext. Price:

$-.--

Est. Tariff:

Pricing (USD)

Qty.	Unit Price	Ext. Price
	$2.01	$2.01
	$1.71	$17.10
	$1.53	$38.25
	$1.45	$145.00
	$1.36	$340.00
	$1.30	$650.00
Full Reel (Order in multiples of 1000)
	$1.23	$1,230.00
	$1.22	$6,100.00

.hidden-for-nojs { display: none; } .pull-right-nojs { justify-content: flex-end; }

Product Attribute	Attribute Value	Select Attribute
Manufacturer:	Amphenol
Product Category:	Heavy Duty Power Connectors
RoHS:
Series:	ATHP
Product:	Contacts
Current Rating:	35 A
Termination Style:	Crimp
Insert/Contact Gender:	Pin (Male)
Contact Plating:	Silver
Contact Material:	Copper Alloy
Wire Gauge Min:	12 AWG
Wire Gauge Max:	10 AWG
Packaging:	Reel
Packaging:	Cut Tape
Tradename:	MagnaMate Mini
Brand:	Amphenol SINE Systems
Contact Gender:	Socket (Female)
Country of Assembly:	Not Available
Country of Diffusion:	Not Available
Country of Origin:	CN
Product Type:	Heavy Duty Power Connectors
Factory Pack Quantity:	1000
Subcategory:	Power Connectors
Unit Weight:	1.193 g

Products found:

To show similar products, select at least one checkbox

Select at least one checkbox above to show similar products in this category.

Attributes selected: 0

Filter Document:

Datasheet

MS10B23S Datasheet (PDF)

Models

3D Model link

Product Catalogs

This functionality requires JavaScript to be enabled.

CAHTS:: 8536900020
USHTS:: 8536904000
JPHTS:: 853690000
KRHTS:: 8536699000
TARIC:: 8536901000
MXHTS:: 8536902800
BRHTS:: 85366990
ECCN:: EAR99

A Series™ Connectors

Amphenol Sine Systems A Series™ family of sealed, heavy-duty, multi-pin plastic and metal connectors is made up of 20+ core product lines. The connectors within this family have been developed as a high-performance, cost-effective solution for use with heavy equipment, agricultural, automotive, military, alternate energy, and other demanding interconnect architectures. The A Series Family bridges the gap between controlled and harsh environmental conditions to keep users connected.

A Series™ Contacts

Amphenol Sine Systems A Series™ Contacts are readily available in a wide variety of material and plating combinations with a number of different contact types. These cost-effective, precision connector contacts are designed for increased reliability. Amphenol Sine Systems A Series Contacts feature a copper alloy, nickel-plated design, and current ratings up to 100A.

MagnaMate™ ATHP Connectors

Amphenol Sine MagnaMate™ ATHP Connectors are designed to withstand the extreme conditions of the trucking, agricultural, mining, construction, and marine industries. MagnaMate ATHP components are IP67-rated in mated condition and operate over a temperature range of -40°C to +130°C or -55°C to +125°C. MagnaMate ATHP connectors feature Amphenol RADSOK contact technology that creates an electrical contact interface that exceeds typical interconnect requirements. MagnaMate withstands extreme vibration and shock and is constructed of heavy-duty thermoplastic. The current rating is 180A for the 8mm/35-50mm² wire, 20A to 35A for the Mini, and 130A to 180A for the QL components.
