MAX22208AUU+

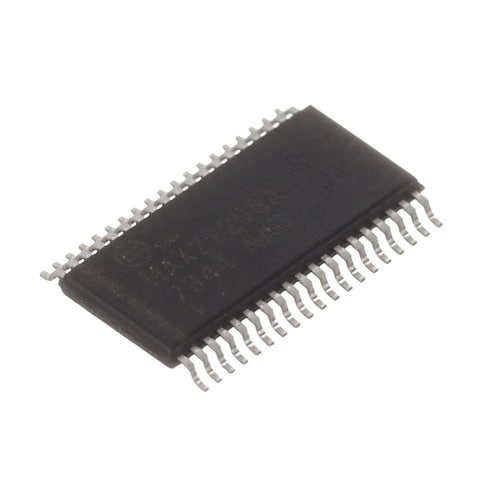

Name: Analog Devices Inc. MAX22208AUU+
Brand: Analog Devices / Maxim Integrated
SKU: 584-MAX22208AUU
Price: 7.1 USD
Availability: InStock

Images are for reference only
See Product Specifications

Mouser No:

584-MAX22208AUU

Mfr. No:

MAX22208AUU+

Mfr.:

Analog Devices / Maxim Integrated

Description:

Motor/Motion/Ignition Controllers & Drivers DUAL H-Bridge for Stepper and Brushed DC

Lifecycle:

New Product:

New from this manufacturer.

Datasheet:

MAX22208AUU+ Datasheet

ECAD Model:

Download the free Library Loader to convert this file for your ECAD Tool. Learn more about the ECAD Model.

More Information

Learn more about Analog Devices / Maxim Integrated MAX22208AUU+

In Stock: 73

Stock:: 73 Can Dispatch Immediately

An unexpected error occurred. Please try again later.
Factory Lead Time:: 10 Weeks Estimated factory production time for quantities greater than shown.

Enter Quantity:

Minimum: 1 Multiples: 1

Unit Price:

$-.--

Ext. Price:

$-.--

Est. Tariff:

Pricing (USD)

Qty.	Unit Price	Ext. Price
	$7.10	$7.10
	$5.48	$54.80
	$5.47	$273.50
	$4.62	$462.00
	$4.40	$1,100.00
	$4.28	$2,140.00
	$4.17	$4,170.00
	$4.15	$10,375.00

.hidden-for-nojs { display: none; } .pull-right-nojs { justify-content: flex-end; }

Product Attribute	Attribute Value	Select Attribute
Manufacturer:	Analog Devices Inc.
Product Category:	Motor/Motion/Ignition Controllers & Drivers
RoHS:
Product:	Half-Bridge Drivers
Operating Supply Current:	3.8 A
Minimum Operating Temperature:	- 40 C
Maximum Operating Temperature:	+ 125 C
Mounting Style:	SMD/SMT
Package/Case:	TSSOP-38
Packaging:	Tube
Brand:	Analog Devices / Maxim Integrated
Country of Assembly:	Not Available
Country of Diffusion:	Not Available
Country of Origin:	TH
Number of Outputs:	2 Output
Product Type:	Motor / Motion / Ignition Controllers & Drivers
Series:	MAX22208
Factory Pack Quantity:	50
Subcategory:	PMIC - Power Management ICs
Supply Voltage - Max:	65 V
Supply Voltage - Min:	4.5 V

Products found:

To show similar products, select at least one checkbox

Select at least one checkbox above to show similar products in this category.

Attributes selected: 0

Filter Document:

Datasheet

MAX22208AUU+ Datasheet

This functionality requires JavaScript to be enabled.

CAHTS:: 8542310000
USHTS:: 8542310030
ECCN:: EAR99

MAX22208 Quad Half H-Bridge Drivers

Analog Devices MAX22208 Quad Half H-Bridge Drivers equip four individually controllable, 65V half H-bridge drivers. The devices can be implemented to drive four solenoids, one single stepper motor, two brushed DC motors or a combination of different loads.
