10719099

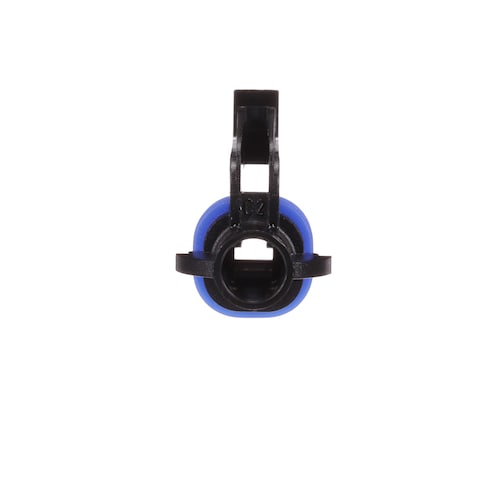

Name: Aptiv 10719099
Brand: Aptiv (formerly Delphi)
SKU: 829-10719099
Price: 1.62 USD
Availability: InStock

Images are for reference only
See Product Specifications

Mouser No:

829-10719099

Mfr. No:

10719099

Mfr.:

Aptiv (formerly Delphi)

Description:

Automotive Connectors ASM CONN 1 F M/P 280 BLK SLD

Datasheet:

10719099 Datasheet (PDF)

ECAD Model:

Download the free Library Loader to convert this file for your ECAD Tool. Learn more about the ECAD Model.

More Information

Learn more about Aptiv (formerly Delphi) 10719099

In Stock: 2,099

Stock:: 2,099 Can Dispatch Immediately

An unexpected error occurred. Please try again later.
Factory Lead Time:: 24 Weeks Estimated factory production time for quantities greater than shown.

Enter Quantity:

Minimum: 1 Multiples: 1

Unit Price:

$-.--

Ext. Price:

$-.--

Est. Tariff:

Pricing (USD)

Qty.	Unit Price	Ext. Price
	$1.62	$1.62
	$0.95	$23.75
	$0.913	$45.65
	$0.879	$87.90
	$0.79	$395.00
	$0.764	$764.00
	$0.582	$1,455.00
	$0.571	$2,855.00
	$0.56	$5,600.00

.hidden-for-nojs { display: none; } .pull-right-nojs { justify-content: flex-end; }

Product Attribute	Attribute Value	Select Attribute
Manufacturer:	Aptiv
Product Category:	Automotive Connectors
RoHS:
Product:	Connectors
Number of Positions:	1 Position
Gender:	Receptacle (Female)
Color:	Black
Series:	Metri-Pack 280
Brand:	Aptiv (formerly Delphi)
Contact Gender:	Female
Contact Type:	Socket
Country of Assembly:	Not Available
Country of Diffusion:	Not Available
Country of Origin:	AT
Current Rating:	30 A
Description/Function:	ASM Connector M/P
Dimensions:	29.9 mm L x 17.5 mm W x 23 mm H
Height:	23 mm
Length:	29.9 mm
Maximum Operating Temperature:	+ 125 C
Minimum Operating Temperature:	- 40 C
Product Type:	Automotive Connectors
Factory Pack Quantity:	2500
Subcategory:	Automotive Connectors
Tradename:	Metri-Pack
Width:	17.5 mm

Products found:

To show similar products, select at least one checkbox

Select at least one checkbox above to show similar products in this category.

Attributes selected: 0

Filter Document:

Datasheet

10719099 Datasheet (PDF)

This functionality requires JavaScript to be enabled.

CNHTS:: 8547200000
CAHTS:: 8538903900
USHTS:: 8538906000
JPHTS:: 853890000
TARIC:: 3926909790
BRHTS:: 85389090
ECCN:: EAR99

Metri-Pack 280 Connectors

Aptiv (formerly Delphi) Metri-Pack 280 Connectors provide a 30A continuous maximum current rating and standard ISO 2.8mm configuration. The 280 series connectors have a 2.8mm blade width, 5mm or 7.7mm centerline spacing, and 0.35mm² to 5mm² cable range. They offer <10mΩ @ 20mV resistance and an operating temperature range of -40°C to +125°C. They feature low energy and low voltage capabilities as well as excellent resistance to temperatures, chemicals, and abrasion. Aptiv Metri-Pack 280 Connectors are designed to meet or exceed the requirements for most marine, appliance, and industrial control applications.

Metri-Pack Connectors

Aptiv Metri-Pack Connectors are a family of electrical connection systems that offer design flexibility and application versatility. The connectors are resistant to extreme temperatures, chemicals, and abrasion. They utilize Connector Position Assurance (CPA) and Terminal Position Assurance (TPA) for superior connection reliability. Strong, stable terminals ensure correct alignment. Aptiv Metri-Pack Connectors are designed for low-energy electronic circuits or power circuit applications, including as high-performance interconnects in sealed or unsealed versions, environmentally sealed electronic headers, junction blocks, electrical centers, and much more.
