FCF20RN

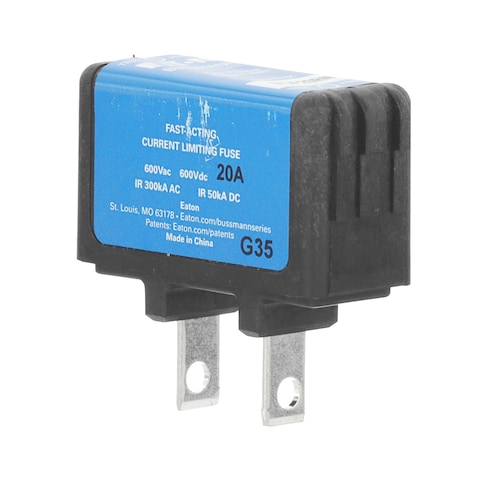

Name: Eaton FCF20RN
Brand: Bussmann / Eaton
SKU: 504-FCF20RN
Price: 98.12 USD
Availability: InStock

Images are for reference only
See Product Specifications

Mouser No:

504-FCF20RN

Mfr. No:

FCF20RN

Mfr.:

Bussmann / Eaton

Description:

Industrial & Electrical Fuses 20A NON-IND FAST ACTING CUBEFUSE

Datasheet:

FCF20RN Datasheet (PDF)

ECAD Model:

Download the free Library Loader to convert this file for your ECAD Tool. Learn more about the ECAD Model.

In Stock: 19

Stock:: 19

Can Dispatch Immediately

An unexpected error occurred. Please try again later.
On Order:: 12
Factory Lead Time:: 12

Weeks Estimated factory production time for quantities greater than shown.

Enter Quantity:

Minimum: 1 Multiples: 1

Unit Price:

$-.--

Ext. Price:

$-.--

Est. Tariff:

Pricing (USD)

Qty.	Unit Price	Ext. Price
	$98.12	$98.12
	$85.83	$429.15
	$71.55	$858.60
	$68.23	$4,093.80
	$65.95	$7,122.60
252	Quote

.hidden-for-nojs { display: none; } .pull-right-nojs { justify-content: flex-end; }

Product Attribute	Attribute Value	Select Attribute
Manufacturer:	Eaton
Product Category:	Industrial & Electrical Fuses
RoHS:
Series:	FCF_RN
Product:	Class CF Fuses
Current Rating:	20 A
Voltage Rating AC:	600 VAC
Voltage Rating DC:	600 VDC
Interrupt Rating:	300 kA
Body Style:	Square Body Blade Fuses
Mounting Style:	Holder
Termination Style:	Radial Blade Plug In
Fuse Size/Group:	Class CF
Indicator Style:	Without Indicator
Packaging:	Bulk
Brand:	Bussmann / Eaton
Country of Assembly:	Not Available
Country of Diffusion:	Not Available
Country of Origin:	CN
Height:	25 mm
Length:	48 mm
Maximum Operating Temperature:	+ 80 C
Minimum Operating Temperature:	- 40 C
Factory Pack Quantity:	12
Subcategory:	Fuses
Tradename:	CUBEFuse
Type:	Fast Acting CUBEFuse
Width:	19 mm
Unit Weight:	1 g

Products found:

To show similar products, select at least one checkbox

Select at least one checkbox above to show similar products in this category.

Attributes selected: 0

Filter Document:

Datasheet

FCF20RN Datasheet (PDF)

PCN

Shipping Box External and Internal Label Update (PDF)

This functionality requires JavaScript to be enabled.

CNHTS:: 8536100000
CAHTS:: 8536100000
USHTS:: 8536100040
JPHTS:: 8536100005
MXHTS:: 8536100040
BRHTS:: 85361000
ECCN:: EAR99

Battery Management Systems

Eaton provides a wide portfolio of products for Battery Management Systems (BMS), including terminal blocks, fuses, supercapacitors, chokes, inductors, and more. Battery Management Systems monitor individual cells, system voltage, current, and temperature. When monitoring individual cells, the BMS balances voltages and regulates the current flow, and if the upper or lower voltage, current, or temperature limit is exceeded, the BMS temporarily disconnects the load or source. Eaton Battery Management Systems estimate the State of Health (SoH), State of Charge (SoC), State of Energy (SoE), and State of Power (SoP) in batteries.
