AC01P100WA1R500

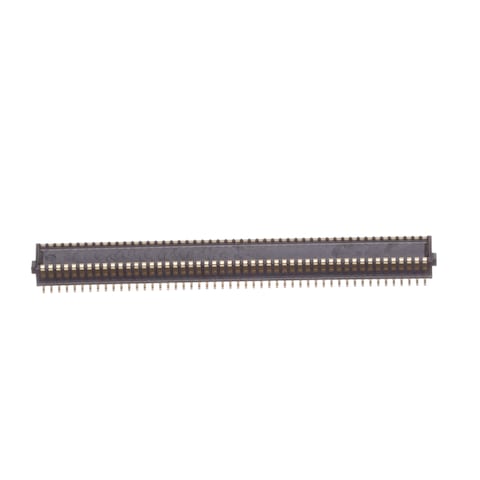

Name: JAE Electronics AC01P100WA1R500
Brand: JAE Electronics
SKU: 656-AC01P100WA1R500
Price: 8.05 USD
Availability: InStock

Images are for reference only
See Product Specifications

Mouser No:

656-AC01P100WA1R500

Mfr. No:

AC01P100WA1R500

Mfr.:

JAE Electronics

Description:

Board to Board & Mezzanine Connectors B to B, 0.5mm Pitch 50 position plug

Datasheet:

AC01P100WA1R500 Datasheet (PDF)

ECAD Model:

Download the free Library Loader to convert this file for your ECAD Tool. Learn more about the ECAD Model.

More Information

Learn more about JAE Electronics AC01P100WA1R500

In Stock: 526

Stock:: 526

Can Dispatch Immediately

An unexpected error occurred. Please try again later.
On Order:: 500
Factory Lead Time:: 15

Weeks Estimated factory production time for quantities greater than shown.

Enter Quantity:

Minimum: 1 Multiples: 1

Unit Price:

$-.--

Ext. Price:

$-.--

Est. Tariff:

Pricing (USD)

Qty.	Unit Price	Ext. Price
	$8.05	$8.05
	$6.84	$68.40
	$6.41	$160.25
	$6.10	$305.00
	$5.81	$581.00
	$5.66	$1,415.00
Full Reel (Order in multiples of 500)
	$5.18	$2,590.00
	$4.80	$4,800.00
	$4.79	$11,975.00

.hidden-for-nojs { display: none; } .pull-right-nojs { justify-content: flex-end; }

Product Attribute	Attribute Value	Select Attribute
Manufacturer:	JAE Electronics
Product Category:	Board to Board & Mezzanine Connectors
RoHS:
Product:	Connectors
Number of Positions:	100 Position
Pitch:	0.5 mm (0.02 in)
Number of Rows:	2 Row
Termination Style:	Solder
Mounting Angle:	Straight
Stack Height:	2.5 mm, 3 mm
Current Rating:	300 mA
Minimum Operating Temperature:	- 40 C
Maximum Operating Temperature:	+ 85 C
Contact Plating:	Gold
Contact Material:	Copper Alloy
Housing Material:	Liquid Crystal Polymer (LCP)
Series:	AC01
Packaging:	Reel
Packaging:	Cut Tape
Brand:	JAE Electronics
Country of Assembly:	Not Available
Country of Diffusion:	Not Available
Country of Origin:	JP
Product Type:	Board to Board & Mezzanine Connectors
Factory Pack Quantity:	500
Subcategory:	Board to Board & Mezzanine Connectors

Products found:

To show similar products, select at least one checkbox

Select at least one checkbox above to show similar products in this category.

Attributes selected: 0

Filter Document:

Datasheet

AC01P100WA1R500 Datasheet (PDF)

PCN

Product Change Notification (PDF)

This functionality requires JavaScript to be enabled.

CNHTS:: 8536901100
CAHTS:: 8536690020
USHTS:: 8536694040
JPHTS:: 853669000
KRHTS:: 8536691000
TARIC:: 8536693000
MXHTS:: 8536699999
BRHTS:: 85366990
ECCN:: EAR99

AC01 0.5mm Board-to-Board Connectors

JAE Electronics AC01 0.5mm Board-to-Board Connectors are 0.5mm pitch, horizontal board-to-board connectors suited for information and communication equipment and other industrial devices. JAE AC01 Connectors are available in 2.5mm and 3.0mm stacking heights and 50, 60, 80, or 100 contacts. The series employs a highly stable and reliable contact structure.
