203555-2124

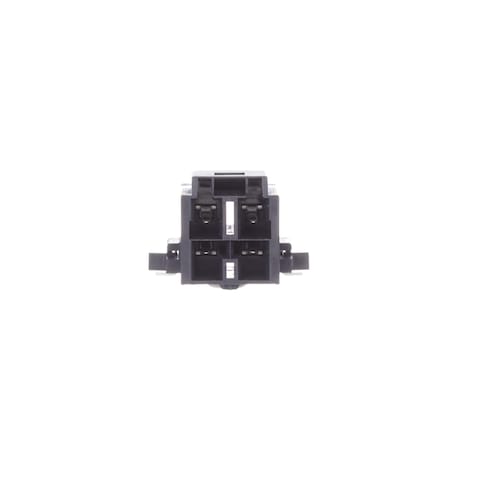

Name: Molex 203555-2124
Brand: Molex
SKU: 538-203555-2124
Price: 4.91 USD
Availability: InStock

Images are for reference only
See Product Specifications

Mouser No:

538-203555-2124

Mfr. No:

203555-2124

Mfr.:

Molex

Description:

Headers & Wire Housings CP-6.5 HDR 6.5mm DR 4CKT RA POLZ SMT BLK

Datasheet:

203555-2124 Datasheet

ECAD Model:

Download the free Library Loader to convert this file for your ECAD Tool. Learn more about the ECAD Model.

More Information

Learn more about Molex 203555-2124

In Stock: 1,510

Stock:: 1,510 Can Dispatch Immediately

An unexpected error occurred. Please try again later.
Factory Lead Time:: 40 Weeks Estimated factory production time for quantities greater than shown.

Quantities greater than 1510 will be subject to minimum order requirements.

Enter Quantity:

Minimum: 1 Multiples: 1

Unit Price:

$-.--

Ext. Price:

$-.--

Est. Tariff:

Pricing (USD)

Qty.	Unit Price	Ext. Price
	$4.91	$4.91
	$4.05	$40.50
Full Reel (Order in multiples of 250)
	$3.44	$860.00
	$3.34	$1,670.00
	$2.77	$2,770.00
	$2.65	$6,625.00
5,000	Quote

.hidden-for-nojs { display: none; } .pull-right-nojs { justify-content: flex-end; }

Product Attribute	Attribute Value	Select Attribute
Manufacturer:	Molex
Product Category:	Headers & Wire Housings
RoHS:
Product:	Headers
Type:	Power
Number of Positions:	4 Position
Pitch:	6.5 mm (0.256 in)
Number of Rows:	2 Row
Mounting Style:	Through Hole
Termination Style:	Solder Pin
Mounting Angle:	Right Angle
Contact Gender:	Pin (Male)
Contact Plating:	Tin
Termination Post Length:	3.81 mm (0.15 in)
Series:	203555
Tradename:	CP-6.5
Application:	Wire-to-Board, Power
Minimum Operating Temperature:	- 40 C
Maximum Operating Temperature:	+ 105 C
Packaging:	Reel
Packaging:	Cut Tape
Brand:	Molex
Contact Material:	Copper Alloy
Country of Assembly:	Not Available
Country of Diffusion:	Not Available
Country of Origin:	IN
Current Rating:	11.8 A
Flammability Rating:	UL 94 V-0
Housing Material:	Nylon
Product Type:	Headers & Wire Housings
Factory Pack Quantity:	250
Subcategory:	Headers & Wire Housings
Voltage Rating:	600 VAC/DC
Part # Aliases:	2035552124 02035552124
Unit Weight:	3.121 g

Products found:

To show similar products, select at least one checkbox

Select at least one checkbox above to show similar products in this category.

Attributes selected: 0

Filter Document:

Datasheet

203555-2124 Datasheet

Images

3D Image

Models

PCN

RoHS Certificate (PDF)

CNHTS:: 8538900000
CAHTS:: 8536690020
USHTS:: 8536694040
JPHTS:: 853669000
KRHTS:: 8536691000
TARIC:: 8536693000
MXHTS:: 8536699999
BRHTS:: 85366990
ECCN:: EAR99

CP-6.5 Wire-to-Board Connector System

Molex CP-6.5 Wire-to-Board Connector System is a foolproof interconnect system that provides quick, easy identification of mated pairs in wire-to-board applications. The 6.50mm wire-to-board receptacles and PCB headers have color-coded housings to differentiate mating possibilities. Connectors with mismatched colors do not mate. Unique keying features within each header and receptacle housing prevent the entry of the receptacle into the header when mismated. A positive lock feature produces an audible click when fully mated.
