206460-0011

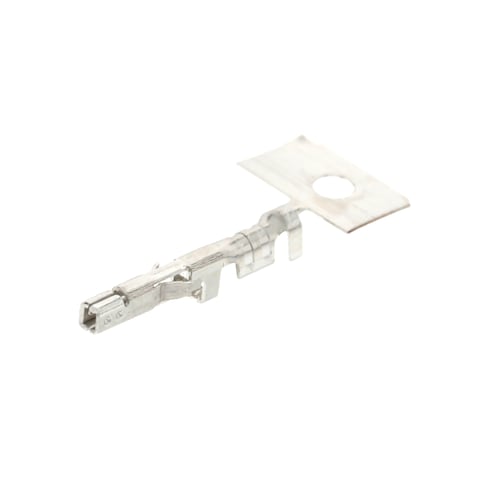

Name: Molex 206460-0011
Brand: Molex
SKU: 538-206460-0011
Price: 0.17 USD
Availability: InStock

Images are for reference only
See Product Specifications

Mouser No:

538-206460-0011

Mfr. No:

206460-0011

Mfr.:

Molex

Description:

Terminals Micro-Fit Plus Fem Crp Term 26-30AWG

Datasheet:

206460-0011 Datasheet

ECAD Model:

Download the free Library Loader to convert this file for your ECAD Tool. Learn more about the ECAD Model.

More Information

Learn more about Molex 206460-0011

In Stock: 12,101

Stock:: 12,101 Can Dispatch Immediately

An unexpected error occurred. Please try again later.
Factory Lead Time:: 10 Weeks Estimated factory production time for quantities greater than shown.

Enter Quantity:

Minimum: 1 Multiples: 1

Unit Price:

$-.--

Ext. Price:

$-.--

Est. Tariff:

Pricing (USD)

Qty.	Unit Price	Ext. Price
	$0.17	$0.17
Full Reel (Order in multiples of 12000)
	$0.062	$744.00
	$0.058	$2,088.00
	$0.056	$2,688.00

.hidden-for-nojs { display: none; } .pull-right-nojs { justify-content: flex-end; }

Product Attribute	Attribute Value	Select Attribute
Manufacturer:	Molex
Product Category:	Terminals
RoHS:
Product:	Contacts
Type:	Pin
Termination Style:	Crimp
Gender:	Female
Insulation:	Not Insulated
Wire Gauge Min:	30 AWG
Wire Gauge Max:	26 AWG
Mounting Style:	Cable Mount / Free Hanging
Contact Plating:	Tin
Contact Material:	Copper Alloy
Series:	206460
Tradename:	Micro-Fit+
Packaging:	Reel
Packaging:	Cut Tape
Brand:	Molex
Contact Gender:	Socket (Female)
Country of Assembly:	Not Available
Country of Diffusion:	Not Available
Country of Origin:	CN
Current Rating:	12.5 A
Product Type:	Terminals
Factory Pack Quantity:	12000
Subcategory:	Terminals
Voltage Rating:	600 V
Unit Weight:	87 mg

Products found:

To show similar products, select at least one checkbox

Select at least one checkbox above to show similar products in this category.

Attributes selected: 0

Filter Document:

Datasheet

206460-0011 Datasheet

Images

3D Image

Specification Sheets

Technical Resources

Drawing (PDF)

RoHS Certificate (PDF)

CNHTS:: 8536901100
USHTS:: 8536904000
ECCN:: EAR99

Power Solutions

Molex is uniquely equipped to provide power delivery and power distribution in wire-to-wire, wire-to-board, and board-to-board configurations. Molex's wide selection of power connectors ranges from versatile to popular and proven. Designers can achieve power delivery and power distribution with Molex's vast array of power connectors.

Micro-Fit+ Connectors

Molex Micro-Fit+ Connectors offer superior design options for flexibility and efficient assembly. The connectors offer a high current rating of up to 13.5A with a 3mm pitch and use the same amount of space that smaller connectors occupy. Features include a smaller PCB footprint, a reduced mating force of 40%, and an enhanced TPA design that provides stability and security for the terminals inside the receptacle. Molex Micro-Fit+ applications include consumer, telecommunication/networking, medical, sustainable energy, and automotive.

Body Electronics Solutions

Molex Body Electronics Solutions create dynamic solutions for unique driving styles and enhance vehicle functionality. Molex Body Electronics products include control modules, cable assemblies, and interconnects that minimize weight and maximize space utilization. Molex Body Electronics are ideal for steering, power distribution, entry systems, and climate control applications.
