213225-0411

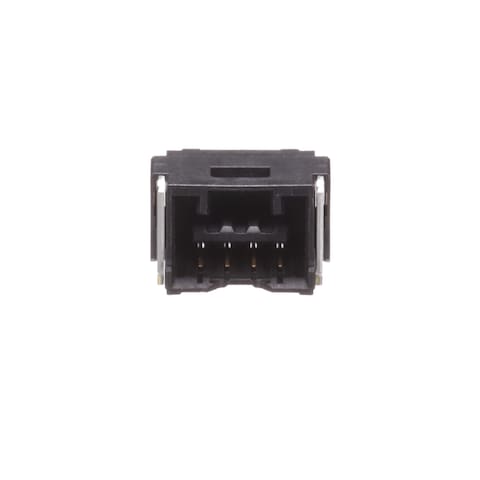

Name: Molex 213225-0411
Brand: Molex
SKU: 538-213225-0411
Price: 1.37 USD
Availability: InStock

Images are for reference only
See Product Specifications

Mouser No:

538-213225-0411

Mfr. No:

213225-0411

Mfr.:

Molex

Description:

Headers & Wire Housings 1.50mm P Recp Surf Mnt Vert Au 4Ckt Blk

Datasheet:

213225-0411 Datasheet

ECAD Model:

Download the free Library Loader to convert this file for your ECAD Tool. Learn more about the ECAD Model.

More Information

Learn more about Molex 213225-0411

In Stock: 16,300

Stock:: 16,300 Can Dispatch Immediately

An unexpected error occurred. Please try again later.

Enter Quantity:

Minimum: 1 Multiples: 1

Unit Price:

$-.--

Ext. Price:

$-.--

Est. Tariff:

Pricing (USD)

Qty.	Unit Price	Ext. Price
	$1.37	$1.37
	$1.20	$12.00
	$1.15	$28.75
	$1.07	$107.00
	$0.972	$243.00
	$0.895	$447.50
Full Reel (Order in multiples of 900)
	$0.801	$720.90
	$0.751	$1,351.80
	$0.698	$3,141.00

.hidden-for-nojs { display: none; } .pull-right-nojs { justify-content: flex-end; }

Product Attribute	Attribute Value	Select Attribute
Manufacturer:	Molex
Product Category:	Headers & Wire Housings
RoHS:
Product:	Headers
Type:	Receptacle
Number of Positions:	4 Position
Pitch:	1.5 mm (0.059 in)
Number of Rows:	1 Row
Mounting Style:	SMD/SMT
Termination Style:	Solder
Mounting Angle:	Straight
Contact Gender:	Socket (Female)
Contact Plating:	Gold
Series:	213225
Tradename:	CLIK-Mate
Application:	Wire-to-Board, Signal
Minimum Operating Temperature:	- 40 C
Maximum Operating Temperature:	+ 105 C
Packaging:	Reel
Packaging:	Cut Tape
Brand:	Molex
Contact Material:	Copper Alloy
Country of Assembly:	Not Available
Country of Diffusion:	Not Available
Country of Origin:	JP
Current Rating:	2 A
Flammability Rating:	UL 94 V-0
Housing Colour:	Black
Housing Material:	Polyamide (PA)
Product Type:	Headers & Wire Housings
Factory Pack Quantity:	900
Subcategory:	Headers & Wire Housings
Voltage Rating:	100 VAC/DC
Part # Aliases:	2132250411 02132250411
Unit Weight:	496 mg

Products found:

To show similar products, select at least one checkbox

Select at least one checkbox above to show similar products in this category.

Attributes selected: 0

Filter Document:

PCN

Specification Sheets

2132259200-SPK-200 (PDF)

RoHS Certificate (PDF)

CNHTS:: 8536901100
CAHTS:: 8536690020
USHTS:: 8536694040
JPHTS:: 853669000
KRHTS:: 8536691000
TARIC:: 8536693000
MXHTS:: 8536699999
BRHTS:: 85366990
ECCN:: EAR99

CLIK-Mate 1.50mm Wire-to-Board Connectors

Molex CLIK-Mate 1.50mm Wire-To-Board Connectors are surface mount receptacles with right-angle or vertical alignment. The CLIK-Mate 1.50mm Connectors provide secure electrical contact, low insertion force, and mating assurance in a wide variety of configurations, circuit sizes, and current options. These 1.50mm pitch connectors are designed for applications requiring higher pin-count connectors to carry more signal lines in less space.
