3901-4067

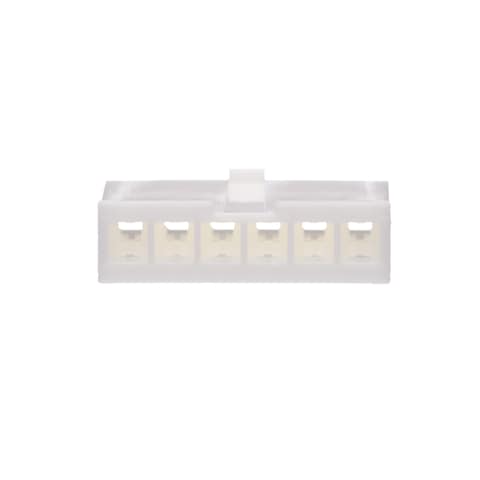

Images are for reference only
See Product Specifications

Mouser No:

538-3901-4067

Mfr. No:

3901-4067

Mfr.:

Molex

Description:

Headers & Wire Housings MiniFitJr SR Plug FreeHng V-0 6 Ckt

Datasheet:

3901-4067 Datasheet (PDF)

ECAD Model:

Download the free Library Loader to convert this file for your ECAD Tool. Learn more about the ECAD Model.

Delivery Restriction:

Mouser does not presently sell this product in your region.

Availability

Stock:: An unexpected error occurred. Please try again later.

.hidden-for-nojs { display: none; } .pull-right-nojs { justify-content: flex-end; }

Product Attribute	Attribute Value	Select Attribute
Manufacturer:	Molex
Product Category:	Headers & Wire Housings
Delivery Restriction:	Mouser does not presently sell this product in your region.
RoHS:
Product:	Wire Housings
Type:	Plug Housing
Number of Positions:	6 Position
Pitch:	4.2 mm (0.165 in)
Number of Rows:	1 Row
Row Spacing:	4.2 mm (0.165 in)
Mounting Style:	Cable Mount / Free Hanging
Termination Style:	Crimp
Contact Gender:	Pin (Male)
Series:	5559
Tradename:	Mini-Fit Jr.
Application:	Wire-to-Board, Wire-to-Wire, Power
Minimum Operating Temperature:	- 40 C
Maximum Operating Temperature:	+ 105 C
Packaging:	Bulk
Brand:	Molex
Country of Assembly:	Not Available
Country of Diffusion:	Not Available
Country of Origin:	US
Current Rating:	13 A
Flammability Rating:	UL 94 V-0
Housing Colour:	Natural
Housing Gender:	Plug
Housing Material:	Nylon
Product Type:	Headers & Wire Housings
Factory Pack Quantity:	3000
Subcategory:	Headers & Wire Housings
Part # Aliases:	39014067 039014067
Unit Weight:	2.231 g

Products found:

To show similar products, select at least one checkbox

Select at least one checkbox above to show similar products in this category.

Attributes selected: 0

Filter Document:

Specification Sheets

Technical Resources

Drawing (PDF)

Test/Quality Data

Test Summary (PDF)

RoHS Certificate (PDF)

CNHTS:: 8538900000
USHTS:: 8538906000
ECCN:: EAR99

Mini-Fit Connector Family

Molex Mini-Fit Jr. and Mini-Fit Plus Power Connectors deliver up to 9A and 13A, respectively. Blind-mating and terminal-position assurance (TPA) options provide a versatile connector system for a wide range of applications. Typical applications for these Molex connectors include telecommunications / networking, industrial, home appliances, medical, and automotive.

Fit Family Connectors

Molex Fit Dual-Row Connectors provide power delivery and power distribution in wire-to-wire, wire-to-board, and board-to-board configurations. Molex Fit power connectors range from the 2.50mm pitch Nano-Fit to the 5.7mm pitch Mega-Fit connectors. These off-the-shelf connectors can be modified, customized, or adapted to meet virtually any application need.

Mini-Fit Jr. Connectors

Molex Mini-Fit Jr. Connectors are ideal for higher-current / higher-density applications that require design flexibility for wire-to-wire and wire-to-board configurations. Molex Mini-Fit Jr. connectors are made for power applications up to 9.0A per circuit. The connectors feature fully isolated terminals, positive housing locks, low-engagement forces, and polarized housings. They are UL recognized, CSA approved, and TUV licensed. All components are lead free and RoHS compliant. Molex Mini-Fit Jr. Connectors are available in a single row or dual row, 2 to 24 circuit options, and multiple plating and material selections.
