505606-0801

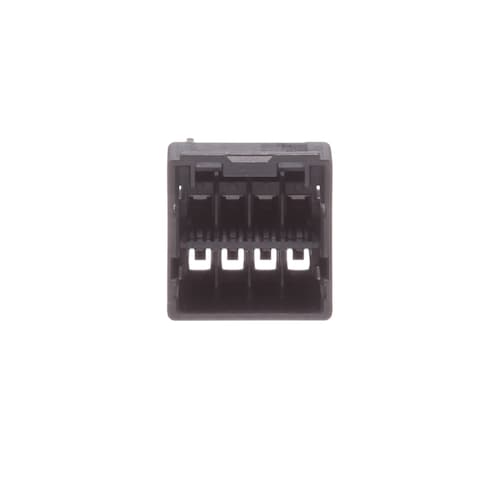

Name: Molex 505606-0801
Brand: Molex
SKU: 538-505606-0801
Price: 0.57 USD
Availability: InStock

Images are for reference only
See Product Specifications

Mouser No:

538-505606-0801

Mfr. No:

505606-0801

Mfr.:

Molex

Description:

Headers & Wire Housings CP3.3 PLUG 3.3mm DR 8CKT POLZ PsInLk BLK

Datasheet:

505606-0801 Datasheet

ECAD Model:

Download the free Library Loader to convert this file for your ECAD Tool. Learn more about the ECAD Model.

More Information

Learn more about Molex 505606-0801

In Stock: 3,649

Stock:: 3,649 Can Dispatch Immediately

An unexpected error occurred. Please try again later.

Enter Quantity:

Minimum: 1 Multiples: 1

Unit Price:

$-.--

Ext. Price:

$-.--

Est. Tariff:

Pricing (USD)

Qty.	Unit Price	Ext. Price
	$0.57	$0.57
	$0.499	$4.99
	$0.457	$11.43
	$0.412	$41.20
	$0.376	$112.80
	$0.303	$303.00
	$0.292	$730.00
	$0.278	$1,390.00
	$0.265	$2,650.00

.hidden-for-nojs { display: none; } .pull-right-nojs { justify-content: flex-end; }

Product Attribute	Attribute Value	Select Attribute
Manufacturer:	Molex
Product Category:	Headers & Wire Housings
RoHS:
Product:	Wire Housings
Type:	Plug Housing
Number of Positions:	8 Position
Pitch:	3.3 mm (0.13 in)
Number of Rows:	2 Row
Mounting Style:	Cable Mount / Free Hanging
Termination Style:	Crimp
Mounting Angle:	Straight
Contact Gender:	Pin (Male)
Series:	505606
Tradename:	CP-3.3
Application:	Wire-to-Wire, Signal
Minimum Operating Temperature:	- 40 C
Maximum Operating Temperature:	+ 105 C
Packaging:	Bulk
Brand:	Molex
Contact Type:	Pin (Male)
Country of Assembly:	Not Available
Country of Diffusion:	Not Available
Country of Origin:	IN
Flammability Rating:	UL 94 V-0
Housing Colour:	Black
Housing Gender:	Male
Housing Material:	Polybutylene Terephthalate (PBT)
Product Type:	Headers & Wire Housings
Factory Pack Quantity:	100
Subcategory:	Headers & Wire Housings
Part # Aliases:	5056060801 05056060801
Unit Weight:	3.352 g

Products found:

To show similar products, select at least one checkbox

Select at least one checkbox above to show similar products in this category.

Attributes selected: 0

Filter Document:

CNHTS:: 8538900000
CAHTS:: 8536690020
USHTS:: 8538906000
JPHTS:: 853669000
MXHTS:: 85366999
BRHTS:: 85366990
ECCN:: EAR99

Wire-to-Device

Molex Wire-to-Device solutions offer a wide variety of connector solutions that fit applications requiring high-power solutions or microminiature options. These Molex Wire-to-Device solutions provide reliable field performance.

Industrial Automation

Molex Industrial Automation connectors provide a convenient source for meeting passive interconnect and industrial communications requirements for industrial applications. Molex Industrial Automation simplifies design, installation, and maintenance processes.

Industrial Solutions

Molex Industrial Solutions offer robust products designed for the harshest environmental conditions to deliver safe and reliable connections. These products also provide protection from contamination, moisture, or vibration. The Molex Industrial Solutions lineup features high performance and a long product life.

CP-3.3 Wire-to-Wire Connector System

Molex CP-3.3 Wire-to-Wire Connector System leverages full keying and color-pairing features to enhance user safety while preventing moisture seepage in consumer electronics, white goods, industrial, and medical applications. The CP-3.3 Wire-to-Wire Connector System features single-row or dual-row configurations that is fully polarized with color-coded plug and receptacle housings to ensure fool-proof mating of the wired assembly. These connectors offer a 500V maximum rating in a -40°C to +105°C operating temperature range with maximum current ranges of 2.5A to 7.5A for single-row configurations and 2.0A to 7.0A for dual-row configurations.
