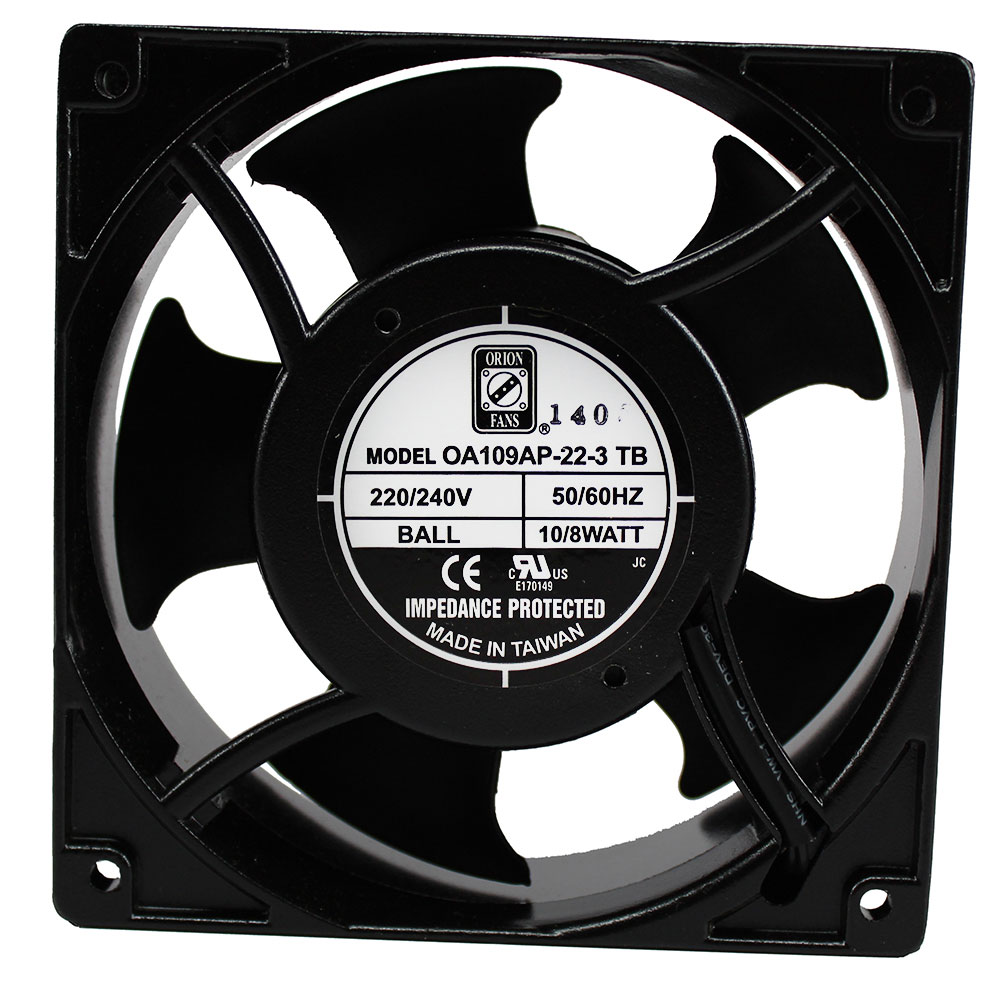

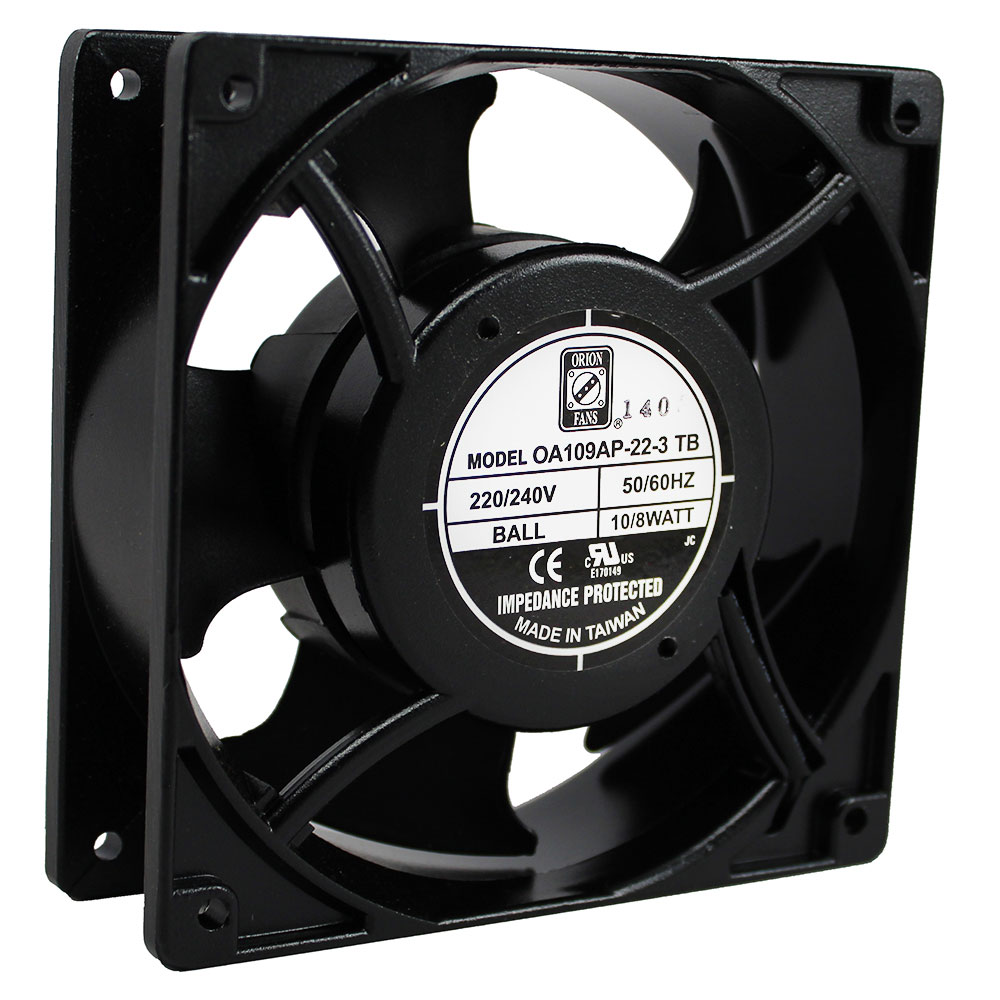

OA109AP-22-3TB

Orion Fans
670-OA109AP223TB
OA109AP-22-3TB

Mfr.:

Description:
AC Fans Axial Fan, 120x120x38mm, 230VAC, 52CFM, 8W, 25dBA, 1600RPM, Ball, Terminals

Datasheet:
ECAD Model:
Download the free Library Loader to convert this file for your ECAD Tool. Learn more about the ECAD Model.

In Stock: 161

Stock:
161
Can Dispatch Immediately
On Order:
80
Factory Lead Time:
21
Weeks Estimated factory production time for quantities greater than shown.
Minimum: 1   Multiples: 1
Unit Price:
$-.--
Ext. Price:
$-.--
Est. Tariff:

Pricing (USD)

Qty. Unit Price
Ext. Price
$22.45 $22.45
$20.16 $201.60
$18.35 $458.75
$17.03 $851.50
$17.02 $1,702.00
$16.38 $4,095.00

Product Attribute Attribute Value Select Attribute
Orion Fans
Product Category: AC Fans
RoHS:
Axial
119.5 mm
385 mm
119.5 mm
230 VAC
65 CFM
Ball
25 dBA
2000 RPM
10 W
Polybutylene Terephthalate (PBT)
Quick Connect Terminal
OA109AP
AC Shaded Pole
Brand: Orion Fans
Country of Assembly: Not Available
Country of Diffusion: Not Available
Country of Origin: TW
Current Type: AC
Lead Length: 119.5 mm
Life: 70000 Hours
Pressure Type: 0.15 in H2O
Product Type: AC Fans
Factory Pack Quantity: 1
Subcategory: Fans, Blowers & Accessories
Unit Weight: 539.774 g
Products found:
To show similar products, select at least one checkbox
Select at least one checkbox above to show similar products in this category.
Attributes selected: 0

Datasheet

Images

Models

Technical Resources

Test/Quality Data

CNHTS:
8414599050
CAHTS:
8414590091
USHTS:
8414596590
JPHTS:
841459029
KRHTS:
8414599000
TARIC:
8414592590
MXHTS:
8414599999
ECCN:
EAR99
