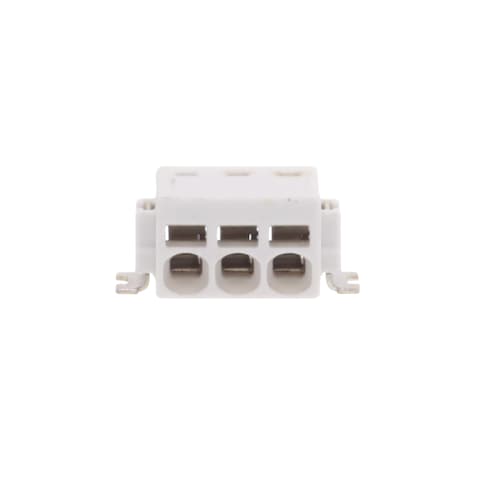

Name: Phoenix Contact 1814647
Brand: Phoenix Contact
SKU: 651-1814647
Price: 1.04 USD
Availability: InStock

Images are for reference only
See Product Specifications

Mouser No:

651-1814647

Mfr. No:

1814647

Mfr.:

Phoenix Contact

Description:

Pluggable Terminal Blocks PTSM 0,5/ 3-2,5-H SMD WH R44

Datasheet:

1814647 Datasheet (PDF)

ECAD Model:

Download the free Library Loader to convert this file for your ECAD Tool. Learn more about the ECAD Model.

More Information

Learn more about Phoenix Contact 1814647

In Stock: 1,710

Stock:: 1,710 Can Dispatch Immediately

An unexpected error occurred. Please try again later.
Factory Lead Time:: 5 Weeks Estimated factory production time for quantities greater than shown.

Enter Quantity:

Minimum: 1 Multiples: 1

Unit Price:

$-.--

Ext. Price:

$-.--

Est. Tariff:

Packaging:

Full Reel (Order in multiples of 770)

Cut Tape

MouseReel™ (+$7.00)

Pricing (USD)

Qty.	Unit Price	Ext. Price
Cut Tape / MouseReel™ ^†
	$1.04	$1.04
	$0.91	$9.10
	$0.878	$21.95
	$0.763	$381.50
Full Reel (Order in multiples of 770)
	$0.762	$586.74
	$0.699	$1,614.69

† A MouseReel™ fee of $7.00 will be added and calculated in your basket. All MouseReel™ orders are non-cancellable and non-returnable. ↩

.hidden-for-nojs { display: none; } .pull-right-nojs { justify-content: flex-end; }

Product Attribute	Attribute Value	Select Attribute
Manufacturer:	Phoenix Contact
Product Category:	Pluggable Terminal Blocks
RoHS:
Product:	Plugs
Number of Positions:	3 Position
Pitch:	2.5 mm
Connection Method:	Push-In
Termination Style:	Solder
Mounting Style:	SMD/SMT
Current Rating:	6 A
Voltage Rating:	160 V
Wire Gauge Min:	26 AWG
Wire Gauge Max:	20 AWG
Series:	PTSM
Packaging:	Reel
Packaging:	Cut Tape
Packaging:	MouseReel
Brand:	Phoenix Contact
Contact Material:	Copper
Country of Assembly:	Not Available
Country of Diffusion:	Not Available
Country of Origin:	IN
Height:	5.12 mm
Housing Material:	Polyamide (PA)
Length:	9 mm
Product Type:	Pluggable Terminal Blocks
Factory Pack Quantity:	770
Subcategory:	Terminal Blocks
Tradename:	COMBICON Compact
Width:	10.1 mm
Part # Aliases:	PTSM_0,5/_3-2,5-H_SMD_WH_R44 PTSM05325HSMDWHR44
Unit Weight:	1.400 g
