EPXBE13P1PB

Name: Radiall EPXBE13P1PB
Brand: Radiall
SKU: 501-EPXBE13P1PB
Price: 86.73 USD
Availability: OutOfStock

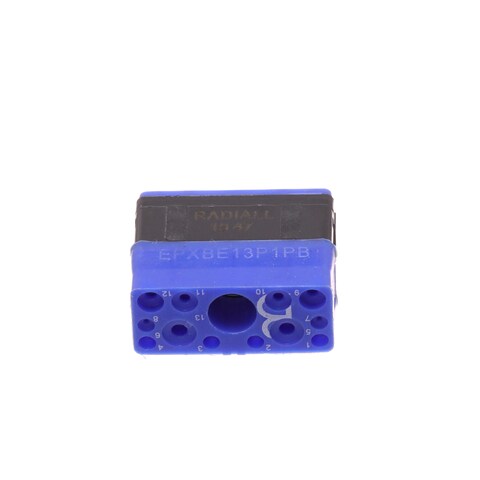

Images are for reference only
See Product Specifications

Mouser No:

501-EPXBE13P1PB

Mfr. No:

EPXBE13P1PB

Mfr.:

Radiall

Description:

Heavy Duty Power Connectors EPXBE13P1PB

Datasheet:

EPXBE13P1PB Datasheet (PDF)

ECAD Model:

Download the free Library Loader to convert this file for your ECAD Tool. Learn more about the ECAD Model.

Availability

Stock:: 0

You can still purchase this product for backorder.

An unexpected error occurred. Please try again later.
Factory Lead Time:: 7 Weeks Estimated factory production time for quantities greater than shown.

Enter Quantity:

Minimum: 1 Multiples: 1

Unit Price:

$-.--

Ext. Price:

$-.--

Est. Tariff:

Pricing (USD)

Qty.	Unit Price	Ext. Price
	$86.73	$86.73
	$83.74	$837.40
	$81.59	$2,039.75
	$80.59	$4,029.50
	$79.21	$7,921.00
250	Quote

.hidden-for-nojs { display: none; } .pull-right-nojs { justify-content: flex-end; }

Product Attribute	Attribute Value	Select Attribute
Manufacturer:	Radiall
Product Category:	Heavy Duty Power Connectors
Product:	Inserts
Number of Positions:	13 Position
Insert/Contact Gender:	Male
Packaging:	Bulk
Tradename:	EPX
Brand:	Radiall
Country of Assembly:	Not Available
Country of Diffusion:	Not Available
Country of Origin:	MX
Product Type:	Heavy Duty Power Connectors
Factory Pack Quantity:	1
Subcategory:	Power Connectors
Unit Weight:	14.305 g

Products found:

To show similar products, select at least one checkbox

Select at least one checkbox above to show similar products in this category.

Attributes selected: 0

Filter Document:

Datasheet

EPXBE13P1PB Datasheet (PDF)

This functionality requires JavaScript to be enabled.

CAHTS:: 8536690040
USHTS:: 8536694030
JPHTS:: 853669000
KRHTS:: 8536699000
TARIC:: 8536699099
MXHTS:: 8536699999
BRHTS:: 85366990
ECCN:: EAR99

EPX® Rectangular Modular Connectors

Radiall EPX® Rectangular Modular Connectors are space-saving with high-density inserts and stackable shells. The EPX connectors are modular and expandable with lightweight shells from size 1 to multi-gang versions. Radiall EPX inserts can cover various contact technologies including signal, power, quadrax, and fiber optics. The backshells of these heavy-duty power connectors are available in aluminum and composite versions. The insert of these connectors can be easily installed and removed from the shell. The EPX shell can accommodate a wide variety of inserts for signal, power, coax, data bus, fiber-optic, and high-frequency BMA contacts. The EPX rectangular modular connectors provide an excellent trade-off between the number of available contacts and the space used. These connectors meet the most stringent requirements of the OEM and are ideal for various applications including disconnect panel.
