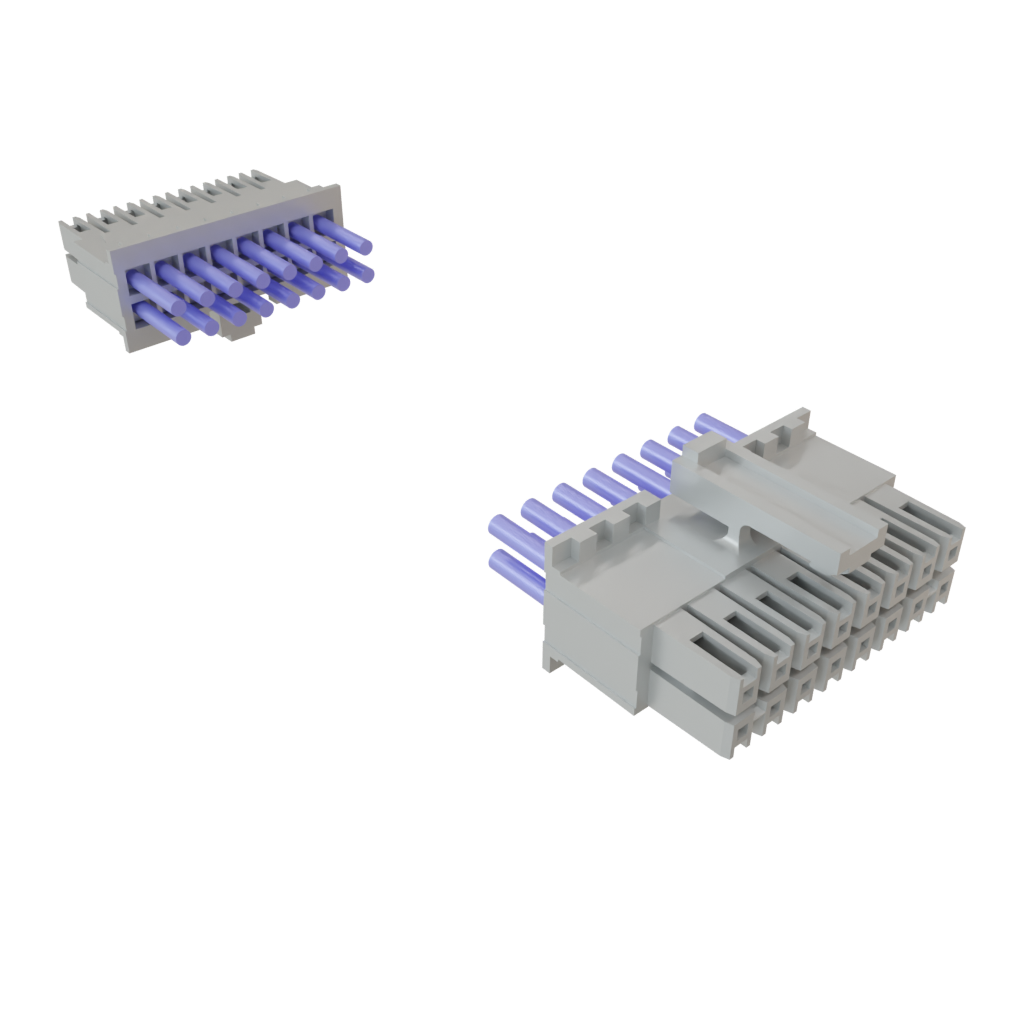

MMSDT-08-20-F-08.00-D-K-LDX

Name: Samtec MMSDT-08-20-F-08.00-D-K-LDX
Brand: Samtec
SKU: 200-MMSDT820F8.DKLDX
Price: 7.58 USD
Availability: OutOfStock

Images are for reference only
See Product Specifications

Mouser No:

200-MMSDT820F8.DKLDX

Mfr. No:

MMSDT-08-20-F-08.00-D-K-LDX

Mfr.:

Samtec

Description:

Rectangular Cable Assemblies .100 Mini Mate Double Row Discrete Wire Cable Assembly

Datasheet:

MMSDT-08-20-F-08.00-D-K-LDX Datasheet (PDF)

ECAD Model:

Download the free Library Loader to convert this file for your ECAD Tool. Learn more about the ECAD Model.

Availability

Stock:: Non-Stocked

An unexpected error occurred. Please try again later.
Factory Lead Time:: 4 Weeks Estimated factory production time.

Enter Quantity:

Minimum: 1 Multiples: 1

Unit Price:

$-.--

Ext. Price:

$-.--

Est. Tariff:

Pricing (USD)

Qty.	Unit Price	Ext. Price
	$7.58	$7.58
	$7.01	$70.10
	$6.66	$166.50
	$5.34	$534.00
	$5.00	$2,500.00
	$4.30	$4,300.00
	$3.61	$7,220.00

.hidden-for-nojs { display: none; } .pull-right-nojs { justify-content: flex-end; }

Product Attribute	Attribute Value	Select Attribute
Manufacturer:	Samtec
Product Category:	Rectangular Cable Assemblies
RoHS:
Series:	MMSDT
Product:	Discrete Wire Cable Assemblies
Type:	Double Row Discrete Cable
Connector End A:	Socket
Connector End A Pin Count:	16 Position
Connector End B:	Socket
Connector End B Pin Count:	16 Position
Gender:	Female / Female
Cable Length:	203.2 mm
Wire Gauge - AWG:	20 AWG
Current Rating:	3.8 A
Packaging:	Bulk
Brand:	Samtec
Country of Assembly:	Not Available
Country of Diffusion:	Not Available
Country of Origin:	US
Jacket Material:	Polytetrafluoroethylene (PTFE)
Pitch:	2.54 mm
Product Type:	Rectangular Cable Assemblies
Factory Pack Quantity:	1
Subcategory:	Cable Assemblies
Tradename:	Mini Mate

Products found:

To show similar products, select at least one checkbox

Select at least one checkbox above to show similar products in this category.

Attributes selected: 0

Filter Document:

Datasheet

MMSDT-08-20-F-08.00-D-K-LDX Datasheet (PDF)

Images


Specification Sheets

Technical Resources

Dimensional Drawing, Footprint, and Part Number Configuration

USHTS:: 8544429090
ECCN:: EAR99

0.100" (2.54mm) Mini Mate® Cable Assemblies

Samtec 0.100" (2.54mm) Mini Mate^® Cable Assemblies offer a wide range of separate and distinct 0.100" wire cable assemblies and sockets. These cable assemblies feature metal or plastic latches and come with mating shrouded terminal strips. The Mini Mate Cable Assemblies are fully polarised with single and double row systems of up to 50 pins. These cable assemblies and sockets include 20 to 30 American Wire Gauge (AWG) cables. The 0.100" (2.54mm) Mini Mate Cable Assemblies can be readily used in driver information systems (DIS), control modules, and various automotive solutions.

Discrete Wire Components & Cable Assemblies

Samtec Discrete Wire Components and Cable Assemblies offer significant space savings and design flexibility in cable-to-board, cable-to-cable, and cable-to-panel applications. This discrete wire family is ideal for a variety of industries, including industrial, automation, military, automotive, and medical. The lineup is available in pitches from 1mm to 4.19mm, with a wire range from 30AWG to 16AWG. Samtec Discrete Wire Components and Cable Assemblies feature a comprehensive selection of bodies, contacts, and terminals with rugged latching, individually shrouded or high-reliability Tiger Eye™ contact systems, ultra-micro-power and high-power versions, keying, polarization, and more.
