S2SD-05-24-L-12.00-DR-NDX

Name: Samtec S2SD-05-24-L-12.00-DR-NDX
Brand: Samtec
SKU: 200-SD0524L1200DRNDX
Price: 12.32 USD
Availability: InStock

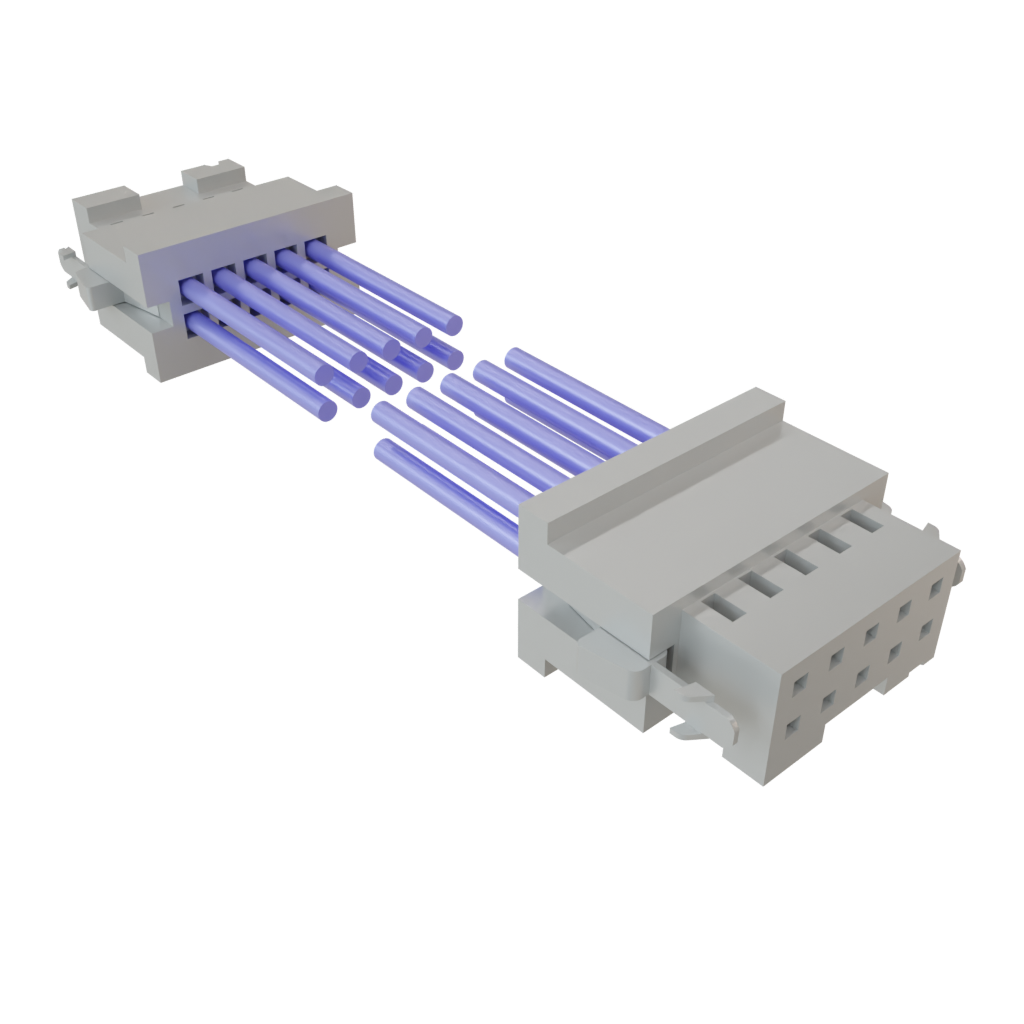

Images are for reference only
See Product Specifications

Mouser No:

200-SD0524L1200DRNDX

Mfr. No:

S2SD-05-24-L-12.00-DR-NDX

Mfr.:

Samtec

Description:

Rectangular Cable Assemblies 2.00 mm Tiger Eye Double Row Discrete Wire Cable Assembly

Datasheet:

S2SD-05-24-L-12.00-DR-NDX Datasheet (PDF)

ECAD Model:

Download the free Library Loader to convert this file for your ECAD Tool. Learn more about the ECAD Model.

More Information

Learn more about Samtec S2SD-05-24-L-12.00-DR-NDX

In Stock: 73

Stock:: 73 Can Dispatch Immediately

An unexpected error occurred. Please try again later.
Factory Lead Time:: 4 Weeks Estimated factory production time for quantities greater than shown.

Enter Quantity:

Minimum: 1 Multiples: 1

Unit Price:

$-.--

Ext. Price:

$-.--

Est. Tariff:

Pricing (USD)

Qty.	Unit Price	Ext. Price
	$12.32	$12.32
	$11.39	$113.90
	$10.77	$269.25
	$10.60	$530.00
	$9.09	$909.00
	$8.66	$4,330.00
	$7.80	$7,800.00
2,000	Quote

.hidden-for-nojs { display: none; } .pull-right-nojs { justify-content: flex-end; }

Product Attribute	Attribute Value	Select Attribute
Manufacturer:	Samtec
Product Category:	Rectangular Cable Assemblies
RoHS:
Series:	S2SD
Product:	Discrete Wire Cable Assemblies
Type:	Double Row Discrete Cable
Connector End A:	Socket
Connector End A Pin Count:	10 Position
Connector End B:	Socket
Connector End B Pin Count:	10 Position
Gender:	Female / Female
Cable Length:	304.8 mm
Wire Gauge - AWG:	24 AWG
Current Rating:	3.8 A
Packaging:	Bulk
Brand:	Samtec
Country of Assembly:	Not Available
Country of Diffusion:	Not Available
Country of Origin:	US
Jacket Material:	Polyvinyl Chloride (PVC)
Pitch:	2 mm
Product Type:	Rectangular Cable Assemblies
Factory Pack Quantity:	1
Subcategory:	Cable Assemblies
Tradename:	Tiger Eye
Voltage Rating:	250 VAC

Products found:

To show similar products, select at least one checkbox

Select at least one checkbox above to show similar products in this category.

Attributes selected: 0

Filter Document:

Datasheet

S2SD-05-24-L-12.00-DR-NDX Datasheet (PDF)

Images

Specification Sheets

Product Specification Sheet (PDF)

Technical Resources

Test Report (PDF)

USHTS:: 8544429090
ECCN:: EAR99

2mm Pitch Tiger Eye™ Discrete Wire Systems

Samtec 2mm Pitch Tiger Eye™ Discrete Wire Systems are available as components or complete assemblies and are shrouded, polarized, and keyed. These discrete wire systems feature metal latch and screw-down options. The 2mm Pitch Tiger Eye™ discrete wire systems feature PVC or Teflon^® cable and are available in assembly tooling.
