SEAM8-20-S02.0-L-04-3

Name: Samtec SEAM8-20-S02.0-L-04-3
Brand: Samtec
SKU: 200-SEAM8-20S2-L-043
Price: 14.03 USD
Availability: InStock

Images are for reference only
See Product Specifications

Mouser No:

200-SEAM8-20S2-L-043

Mfr. No:

SEAM8-20-S02.0-L-04-3

Mfr.:

Samtec

Description:

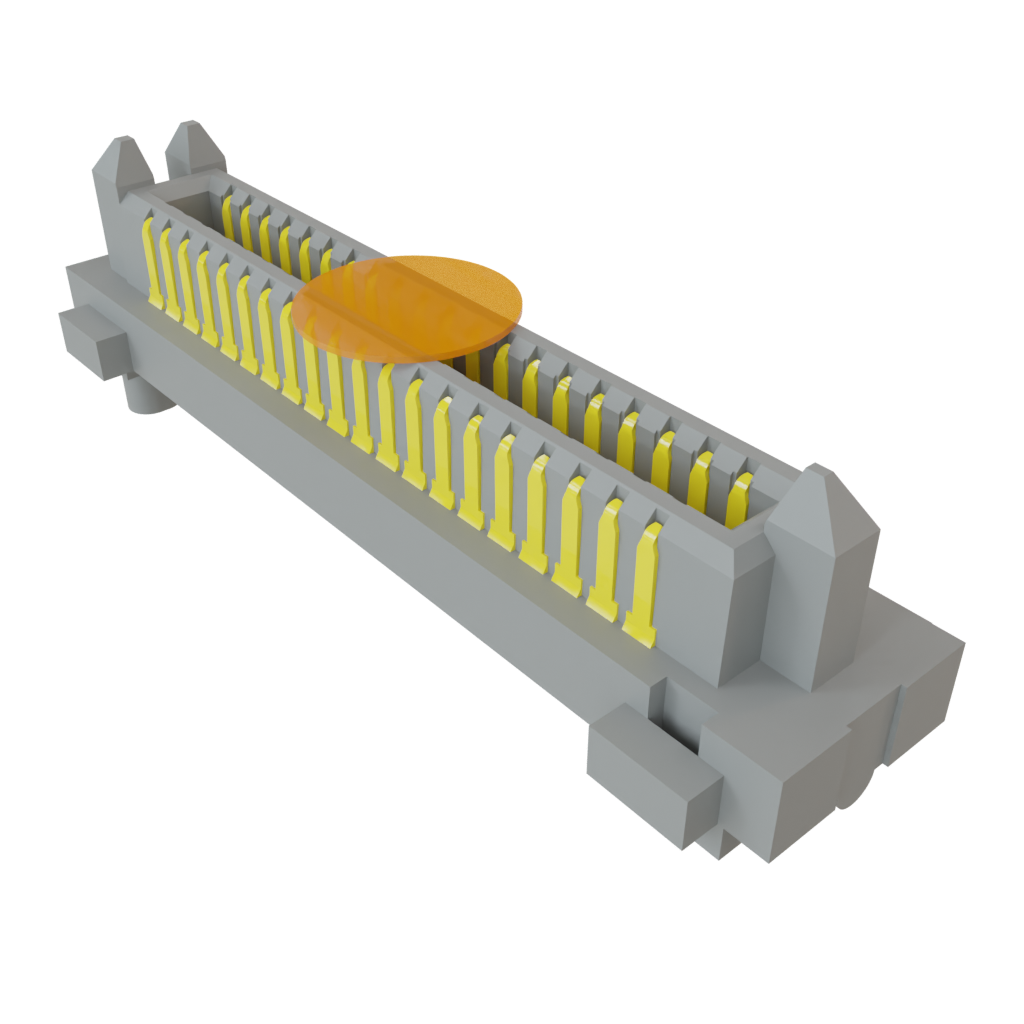

Board to Board & Mezzanine Connectors 0.80 mm SEARAY High-Speed High-Density Open-Pin-Field Array Terminal

Datasheet:

SEAM8-20-S02.0-L-04-3 Datasheet (PDF)

ECAD Model:

Download the free Library Loader to convert this file for your ECAD Tool. Learn more about the ECAD Model.

More Information

Learn more about Samtec SEAM8-20-S02.0-L-04-3

In Stock: 467

Stock:: 467 Can Dispatch Immediately

An unexpected error occurred. Please try again later.
Factory Lead Time:: 5 Weeks Estimated factory production time for quantities greater than shown.

Quantities greater than 467 will be subject to minimum order requirements.

Enter Quantity:

Minimum: 1 Multiples: 1

Unit Price:

$-.--

Ext. Price:

$-.--

Est. Tariff:

Pricing (USD)

Qty.	Unit Price	Ext. Price
	$14.03	$14.03
	$13.28	$132.80
	$12.78	$319.50
	$12.47	$623.50
	$10.17	$1,017.00
	$9.41	$2,352.50
Full Reel (Order in multiples of 475)
	$9.41	$4,469.75
	$7.88	$7,486.00
2,375	Quote

.hidden-for-nojs { display: none; } .pull-right-nojs { justify-content: flex-end; }

Product Attribute	Attribute Value	Select Attribute
Manufacturer:	Samtec
Product Category:	Board to Board & Mezzanine Connectors
RoHS:
Product:	Plugs
Number of Positions:	80 Position
Pitch:	0.8 mm (0.031 in)
Number of Rows:	4 Row
Termination Style:	Solder
Mounting Angle:	Straight
Current Rating:	1.3 A
Maximum Data Rate:	56 Gbps
Contact Plating:	Gold
Contact Material:	Copper Alloy
Housing Material:	Liquid Crystal Polymer (LCP)
Series:	SEAM8
Packaging:	Reel
Packaging:	Cut Tape
Brand:	Samtec
Country of Assembly:	Not Available
Country of Diffusion:	Not Available
Country of Origin:	US
Data Rate:	56 Gbps
Mounting Style:	PCB Mount
Product Type:	Board to Board & Mezzanine Connectors
Factory Pack Quantity:	475
Subcategory:	Board to Board & Mezzanine Connectors
Tradename:	SEARAY
