SMM-110-02-L-D-P

Name: Samtec SMM-110-02-L-D-P
Brand: Samtec
SKU: 200-SMM11002LDP
Price: 4.21 USD
Availability: InStock

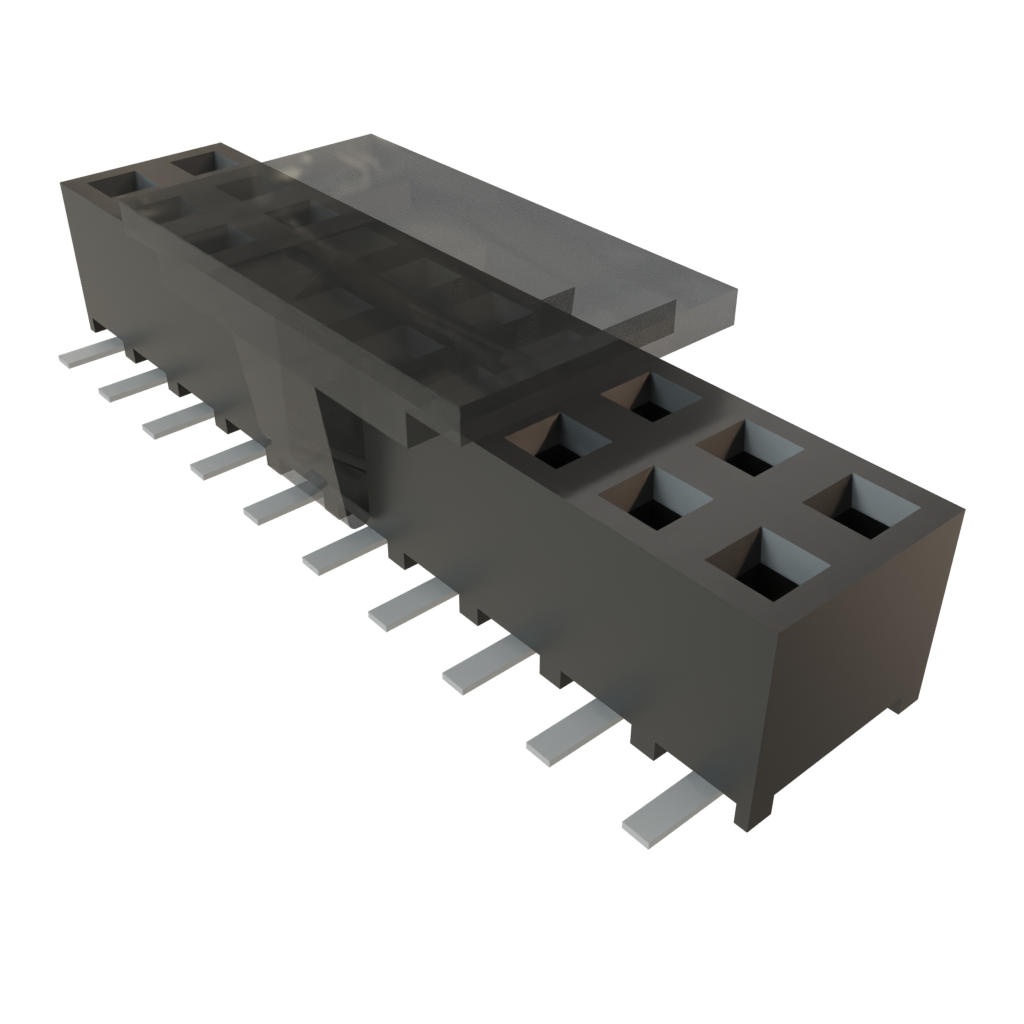

Images are for reference only
See Product Specifications

Mouser No:

200-SMM11002LDP

Mfr. No:

SMM-110-02-L-D-P

Mfr.:

Samtec

Description:

Board to Board & Mezzanine Connectors Low Profile Socket Strips

ECAD Model:

Download the free Library Loader to convert this file for your ECAD Tool. Learn more about the ECAD Model.

In Stock: 22

Stock:: 22 Can Dispatch Immediately

An unexpected error occurred. Please try again later.
Factory Lead Time:: 2 Weeks Estimated factory production time for quantities greater than shown.

Enter Quantity:

Minimum: 1 Multiples: 1

Unit Price:

$-.--

Ext. Price:

$-.--

Est. Tariff:

Pricing (USD)

Qty.	Unit Price	Ext. Price
	$4.21	$4.21
	$3.81	$110.49
	$3.46	$200.68
	$3.18	$368.88
	$2.90	$1,513.80
	$2.52	$2,557.80
	$2.00	$5,046.00
	$1.59	$7,977.03

.hidden-for-nojs { display: none; } .pull-right-nojs { justify-content: flex-end; }

Product Attribute	Attribute Value	Select Attribute
Manufacturer:	Samtec
Product Category:	Board to Board & Mezzanine Connectors
RoHS:
Product:	Sockets
Number of Positions:	20 Position
Pitch:	2 mm (0.079 in)
Number of Rows:	2 Row
Termination Style:	Solder
Mounting Angle:	Straight
Current Rating:	3.2 A
Voltage Rating:	350 V
Maximum Data Rate:	8 Gbps
Minimum Operating Temperature:	- 55 C
Maximum Operating Temperature:	+ 125 C
Contact Plating:	Gold
Contact Material:	Beryllium Copper
Housing Material:	Liquid Crystal Polymer (LCP)
Series:	SMM
Packaging:	Tube
Brand:	Samtec
Country of Assembly:	Not Available
Country of Diffusion:	Not Available
Country of Origin:	MY
Data Rate:	8 Gbps
Flammability Rating:	UL 94 V-0
Product Type:	Board to Board & Mezzanine Connectors
Factory Pack Quantity:	29
Subcategory:	Board to Board & Mezzanine Connectors
Tradename:	Tiger Eye

Products found:

To show similar products, select at least one checkbox

Select at least one checkbox above to show similar products in this category.

Attributes selected: 0

Filter Document:

Images


Specification Sheets

Technical Resources

Test Report (PDF)

USHTS:: 8536694040
ECCN:: EAR99

Flexible Stacking Connectors

Samtec Flex Stacking Board Connectors feature a large variety of board-to-board connectors with design flexibility. These Samtec board-to-board connector systems are available in a variety of pitches, densities, stack heights, orientations, and other standard or modified options, making it easy to find the right connector for any application. Flex-Stack options include one-piece, low profile pass-through, elevated, hermaphroditic, shrouded, coplanar, parallel, and perpendicular. Post heights are adjustable in increments of 0.005” (0.13mm).
