SSW-102-01-T-S

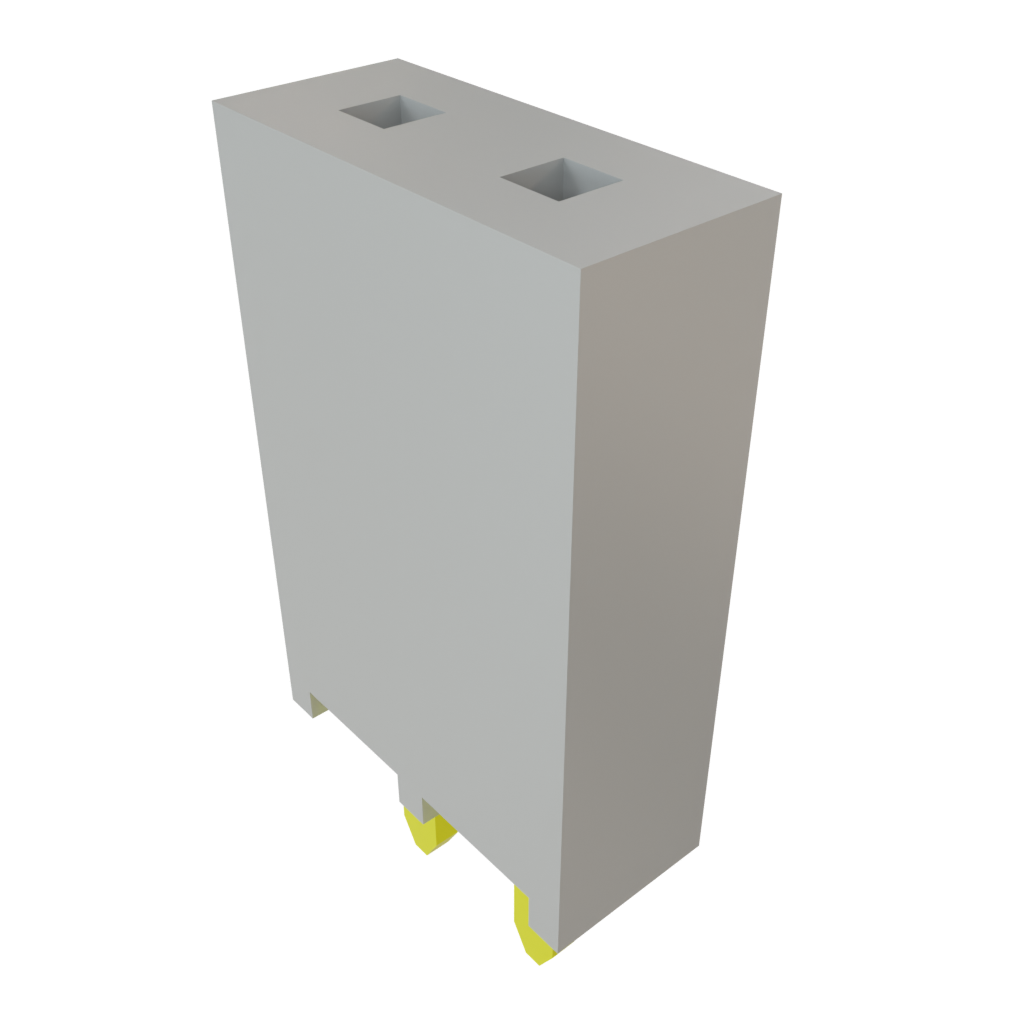

Name: Samtec SSW-102-01-T-S
Brand: Samtec
SKU: 200-SSW10201TS
Price: 0.54 USD
Availability: InStock

Images are for reference only
See Product Specifications

Mouser No:

200-SSW10201TS

Mfr. No:

SSW-102-01-T-S

Mfr.:

Samtec

Description:

Headers & Wire Housings Tiger Buy Socket Strip with PCB Tails

Datasheet:

SSW-102-01-T-S Datasheet (PDF)

ECAD Model:

Download the free Library Loader to convert this file for your ECAD Tool. Learn more about the ECAD Model.

More Information

Learn more about Samtec SSW-102-01-T-S

In Stock: 1,182

Stock:: 1,182 Can Dispatch Immediately

An unexpected error occurred. Please try again later.
Factory Lead Time:: 2 Weeks Estimated factory production time for quantities greater than shown.

Enter Quantity:

Minimum: 1 Multiples: 1

Unit Price:

$-.--

Ext. Price:

$-.--

Est. Tariff:

Pricing (USD)

Qty.	Unit Price	Ext. Price
	$0.54	$0.54
	$0.415	$20.75
	$0.336	$33.60
	$0.286	$143.00
	$0.213	$213.00
	$0.189	$378.00
	$0.141	$705.00

.hidden-for-nojs { display: none; } .pull-right-nojs { justify-content: flex-end; }

Product Attribute	Attribute Value	Select Attribute
Manufacturer:	Samtec
Product Category:	Headers & Wire Housings
RoHS:
Product:	Sockets
Number of Positions:	2 Position
Pitch:	2.54 mm (0.1 in)
Number of Rows:	1 Row
Mounting Style:	Through Hole
Termination Style:	Solder Pin
Mounting Angle:	Straight
Contact Plating:	Tin
Series:	SSW
Tradename:	Tiger Buy
Minimum Operating Temperature:	- 55 C
Maximum Operating Temperature:	+ 105 C
Packaging:	Bulk
Brand:	Samtec
Contact Material:	Phosphor Bronze
Country of Assembly:	Not Available
Country of Diffusion:	Not Available
Country of Origin:	VN
Current Rating:	4.7 A
Flammability Rating:	UL 94 V-0
Housing Material:	Liquid Crystal Polymer (LCP)
Product Type:	Headers & Wire Housings
Factory Pack Quantity:	1
Subcategory:	Headers & Wire Housings
Voltage Rating:	465 VAC, 655 VDC
Unit Weight:	123.840 mg

Products found:

To show similar products, select at least one checkbox

Select at least one checkbox above to show similar products in this category.

Attributes selected: 0

Filter Document:

Specification Sheets

Technical Resources

Test Report (PDF)

CNHTS:: 8536901100
CAHTS:: 8536690020
USHTS:: 8536694040
JPHTS:: 853669000
KRHTS:: 8536691000
TARIC:: 8536693000
MXHTS:: 8536699999
BRHTS:: 85366990
ECCN:: EAR99

SSW Tiger Buy™ Socket Strips w/ PCB Tails

Samtec SSW Tiger Buy™ Socket Strips with PCB Tails feature a 0.100" pitch, 0.025" square-post sockets, and a 4.7A current rating per pin. These strips are broken down based on their through-hole or SMT design and mateable counterparts. SSW strips have Tiger Buy contacts, phosphor-bronze contact material construction, and black LCP insulator material. Samtec SSW Tiger Buy Socket Strips are ideal for new designs and retrofit applications.
