TSM-104-04-L-SV

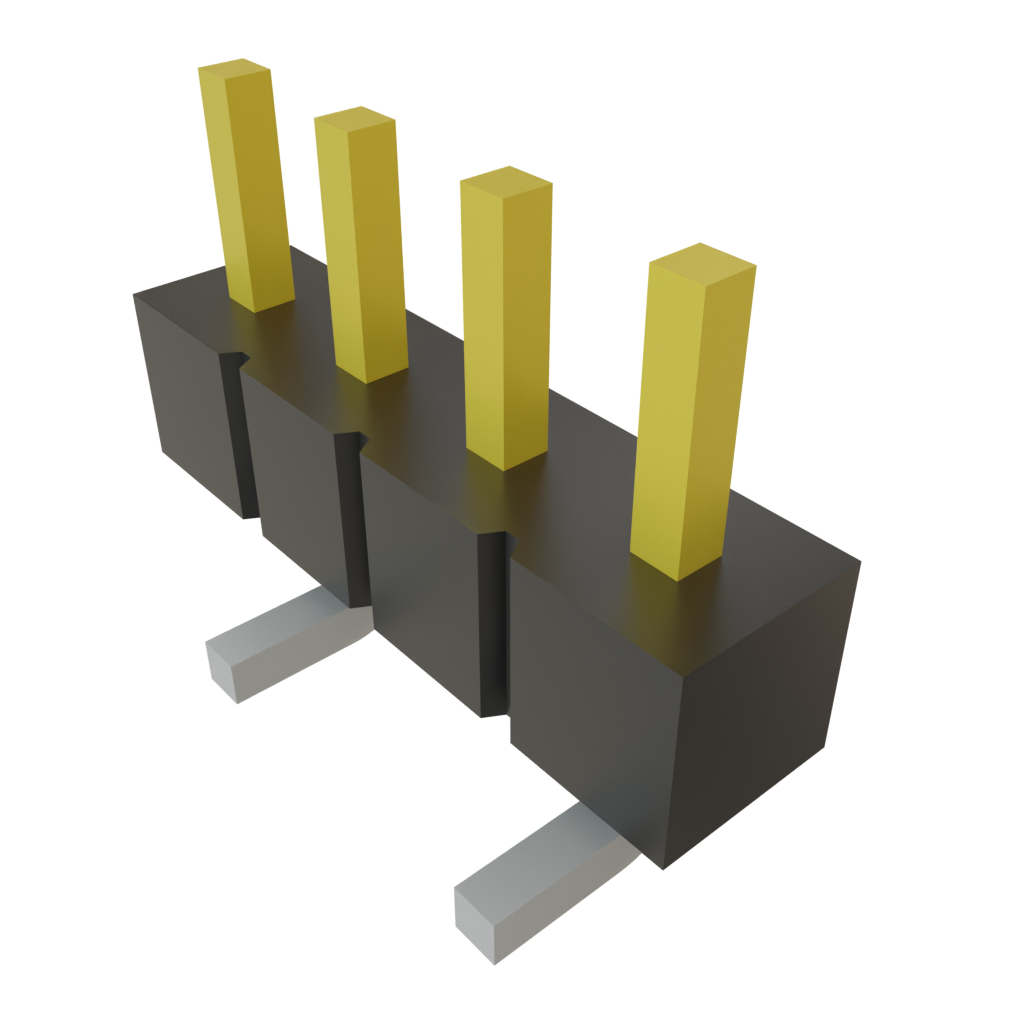

Name: Samtec TSM-104-04-L-SV
Brand: Samtec
SKU: 200-TSM10404LSV
Price: 0.61 USD
Availability: InStock

Images are for reference only
See Product Specifications

Mouser No:

200-TSM10404LSV

Mfr. No:

TSM-104-04-L-SV

Mfr.:

Samtec

Description:

Headers & Wire Housings .100 Surface Mount Terminal Strip
