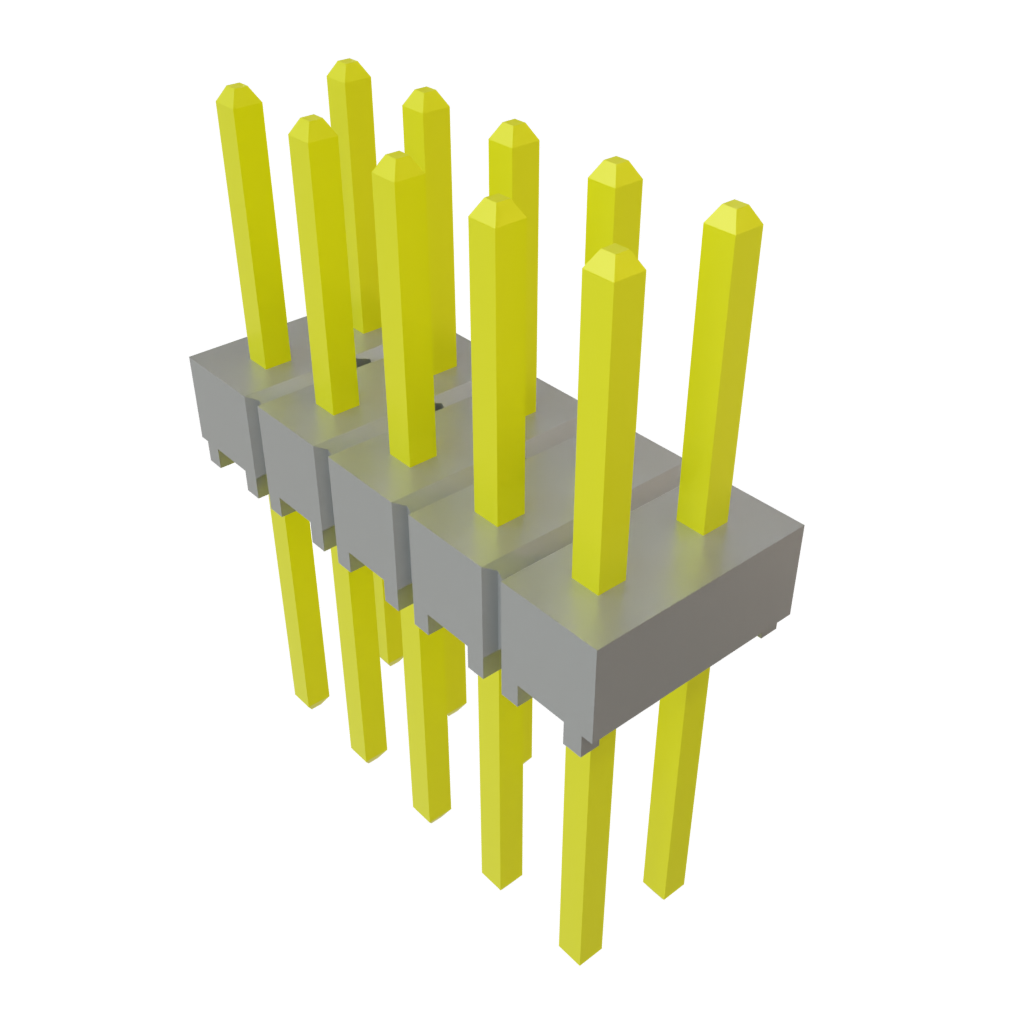

TSW-105-22-G-D

Name: Samtec TSW-105-22-G-D
Brand: Samtec
SKU: 200-TSW10522GD
Price: 1.63 USD
Availability: InStock

Images are for reference only
See Product Specifications

Mouser No:

200-TSW10522GD

Mfr. No:

TSW-105-22-G-D

Mfr.:

Samtec

Description:

Headers & Wire Housings Classic PCB Header Strips

ECAD Model:

Download the free Library Loader to convert this file for your ECAD Tool. Learn more about the ECAD Model.

More Information

Learn more about Samtec TSW-105-22-G-D

In Stock: 250

Stock:: 250 Can Dispatch Immediately

An unexpected error occurred. Please try again later.
Factory Lead Time:: 1 Week Estimated factory production time for quantities greater than shown.

Enter Quantity:

Minimum: 1 Multiples: 1

Unit Price:

$-.--

Ext. Price:

$-.--

Est. Tariff:

Pricing (USD)

Qty.	Unit Price	Ext. Price
	$1.63	$1.63
	$1.26	$63.00
	$1.02	$102.00
	$0.87	$435.00
	$0.80	$800.00
	$0.70	$1,400.00
	$0.62	$3,100.00
	$0.55	$5,500.00
