H52A008NN00420100000

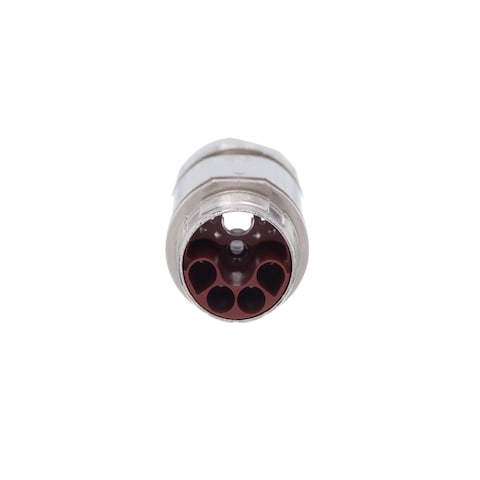

Name: TE Connectivity H52A008NN00420100000
Brand: TE Connectivity / Intercontec
SKU: 571-H52A008NN0042010
Price: 41.56 USD
Availability: InStock

Images are for reference only
See Product Specifications

Mouser No:

571-H52A008NN0042010

Mfr. No:

H52A008NN00420100000

Mfr.:

TE Connectivity / Intercontec

Description:

Circular Metric Connectors 723 htec Extension speedtec

Lifecycle:

Factory Special Order:

Obtain a quote to verify the current price, lead-time and ordering requirements of the manufacturer.

Datasheet:

H52A008NN00420100000 Datasheet

ECAD Model:

Download the free Library Loader to convert this file for your ECAD Tool. Learn more about the ECAD Model.

More Information

Learn more about TE Connectivity / Intercontec H52A008NN00420100000

In Stock: 18

Stock:: 18 Can Dispatch Immediately

An unexpected error occurred. Please try again later.
Factory Lead Time:: 33 Weeks Estimated factory production time for quantities greater than shown.

Quantities greater than 18 will be subject to minimum order requirements.

Enter Quantity:

Minimum: 1 Multiples: 1

Unit Price:

$-.--

Ext. Price:

$-.--

Est. Tariff:

Pricing (USD)

Qty.	Unit Price	Ext. Price
	$41.56	$41.56
	$35.33	$353.30
	$33.49	$837.25
	$31.85	$1,274.00
	$31.29	$8,761.20
520	Quote

.hidden-for-nojs { display: none; } .pull-right-nojs { justify-content: flex-end; }

Product Attribute	Attribute Value	Select Attribute
Manufacturer:	TE Connectivity
Product Category:	Circular Metric Connectors
RoHS:
Product Type:	Circular Metric Connectors
Number of Contacts:	6 Contact, 4 Power + PE
Thread Size:	M23
Termination Style:	Crimp
Current Rating:	1.2 A, 30 A
Voltage Rating:	30 VAC, 50 VDC, 630 VAC, 850 VDC
IP Rating:	IP67
Body Style:	Straight
Brand:	TE Connectivity / Intercontec
Contact Gender:	Without Pin Contacts
Country of Assembly:	Not Available
Country of Diffusion:	Not Available
Country of Origin:	DE
Description/Function:	Extension, Power and Signal Connector
Gender:	Male
Housing Material:	Zinc
Length:	72 mm
Locking Mechanism:	Push Twist
Mounting Style:	Field Attachable-Installable
Product:	Connectors
Shell Style:	Plug
Shielding:	Shielded
Factory Pack Quantity:	40
Subcategory:	Circular Connectors
Type:	Straight
Part # Aliases:	HKA008N00420100000
Unit Weight:	97 g

Products found:

To show similar products, select at least one checkbox

Select at least one checkbox above to show similar products in this category.

Attributes selected: 0

Filter Document:

Datasheet

H52A008NN00420100000 Datasheet

RoHS Certificate (PDF)

CNHTS:: 8536901100
CAHTS:: 8536690030
USHTS:: 8536694020
JPHTS:: 853669000
KRHTS:: 8536699000
TARIC:: 8536699099
BRHTS:: 85366990
ECCN:: EAR99

723 Hybrid Connectors

TE Connectivity's (TE) Intercontec 723 Hybrid Connectors are M23-threaded version connectors with 15 pins and 30A maximum power. TE Intercontec 723 Hybrid Connectors offer 160V voltage and 17mm maximum wire diameter. These power connectors are ideal for use in drive systems, robotics, mechanical engineering, automation mechatronics, medical/chemical engineering, packaging and printing, and aerospace applications.

Industrial Machine Solutions

TE Connectivity's (TE) Industrial Machine Solutions offer reliable solutions for safer, smarter, productive, and more connected machinery. The product offering meets the needs for integration of data connectivity, miniaturized components, product quality, and reliability. These solutions offer IP-rated protective sealing, miniaturization, ease of installation, and ergonomic designs for safety. TE Industrial Machine Solutions meet the challenges engineers are facing when designing for smarter, more connected machinery.

Connectors

TE Connectivity's Intercontec Connectors offer a large variety of solutions that make connecting easy. These connectors consist of only a few single parts with a modular architecture that makes them highly compatible and usable in many different combinations. The connector assembly is possible without any tools due to the crown clamp that allows the shielding mesh to remain uncut. Multiple codings prevent faulty mating of connectors when wiring complex equipment. TE's Intercontec Connectors follow sophisticated engineering principles, ensuring an easy and efficient assembly process.
