1456471-1

TE Connectivity / Raychem
571-1456471-1
1456471-1

Mfr.:

Description:

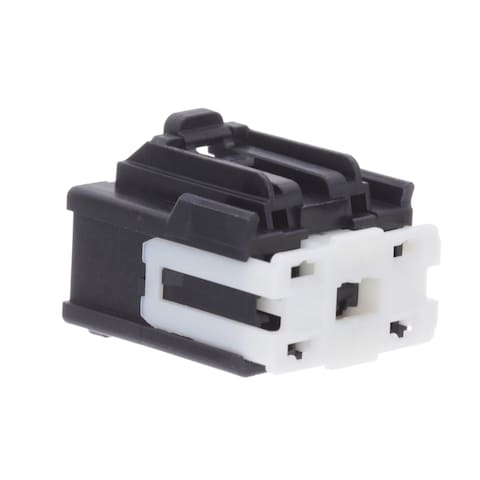

Automotive Connectors 8p Hybrid 0.64/2.8 Unsealed Pl

ECAD Model:
Download the free Library Loader to convert this file for your ECAD Tool. Learn more about the ECAD Model.

In Stock: 118

Stock:
118 Can Dispatch Immediately
Factory Lead Time:
8 Weeks Estimated factory production time for quantities greater than shown.
Minimum: 1   Multiples: 1
Unit Price:
$-.--
Ext. Price:
$-.--
Est. Tariff:

Pricing (USD)

Qty. Unit Price
Ext. Price
$2.17 $2.17
$1.54 $15.40
$1.49 $37.25
$1.40 $140.00
$1.30 $325.00
$1.14 $570.00
$1.08 $2,700.00
$0.957 $4,785.00

Product Attribute Attribute Value Select Attribute
TE Connectivity
Product Category: Automotive Connectors
RoHS:
Housings
8 Position
2.54 mm (0.1 in)
Receptacle (Female)
Cable Mount / Free Hanging
Crimp
Black
Generation Y
Application: Wire to Board/Device
Brand: TE Connectivity / Raychem
Country of Assembly: Not Available
Country of Diffusion: Not Available
Country of Origin: MX
Description/Function: Automotive Connectors 8p Hybrid 0.64/2.8 Unsealed Pl
Height: 21 mm
Housing Material: Polyamide (PA)
Length: 21.42 mm
Locking Mechanism: Integrated in Housing
Maximum Operating Temperature: + 85 C
Minimum Operating Temperature: - 40 C
Mounting Angle: Straight
Number of Rows: 2 Row
Product Type: Automotive Connectors
Row Spacing: 4.5 mm
Factory Pack Quantity: 1
Subcategory: Automotive Connectors
Type: Connector Housing
Width: 24.7 mm
Unit Weight: 6.256 g
Products found:
To show similar products, select at least one checkbox
Select at least one checkbox above to show similar products in this category.
Attributes selected: 0

CNHTS:
8547200000
CAHTS:
8544200000
USHTS:
8538906000
JPHTS:
853890000
TARIC:
8538909999
MXHTS:
8538900100
BRHTS:
85389090
ECCN:
EAR99
