1-2823445-1

Name: TE Connectivity 1-2823445-1
Brand: TE Connectivity
SKU: 571-1-2823445-1
Price: 154.74 USD
Availability: InStock

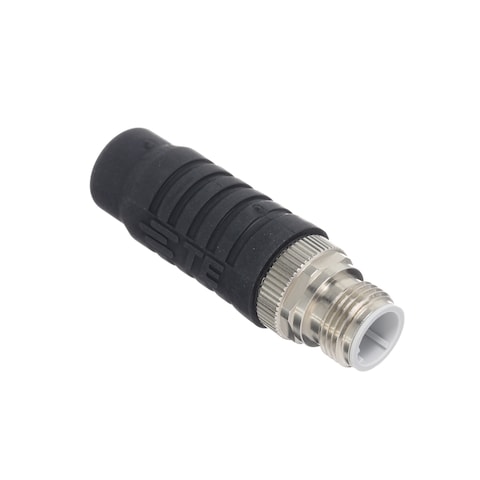

Images are for reference only
See Product Specifications

Mouser No:

571-1-2823445-1

Mfr. No:

1-2823445-1

Mfr.:

TE Connectivity

Description:

Circular Metric Connectors M12 DM4,CAT 5 RADOX 6.6MM,H & S

Datasheet:

1-2823445-1 Datasheet

ECAD Model:

Download the free Library Loader to convert this file for your ECAD Tool. Learn more about the ECAD Model.

More Information

Learn more about TE Connectivity 1-2823445-1

In Stock: 72

Stock:: 72 Can Dispatch Immediately

An unexpected error occurred. Please try again later.
Factory Lead Time:: 24 Weeks Estimated factory production time for quantities greater than shown.

Quantities greater than 72 will be subject to minimum order requirements.

Enter Quantity:

Minimum: 1 Multiples: 1

Unit Price:

$-.--

Ext. Price:

$-.--

Est. Tariff:

This Product Ships FREE

Pricing (USD)

Qty.	Unit Price	Ext. Price
	$154.74	$154.74
	$147.59	$1,475.90
	$145.00	$3,625.00
100	Quote

.hidden-for-nojs { display: none; } .pull-right-nojs { justify-content: flex-end; }

Product Attribute	Attribute Value	Select Attribute
Manufacturer:	TE Connectivity
Product Category:	Circular Metric Connectors
RoHS:
REACH - SVHC:
Product Type:	Circular Metric Connectors
Number of Contacts:	4 Contact
Thread Size:	M12
Termination Style:	Crimp
Coding:	D Coded
Current Rating:	4 A
Voltage Rating:	50 V
IP Rating:	IP67
Series:	M12
Body Style:	Straight
Brand:	TE Connectivity
Contact Gender:	Pin (Male)
Contact Plating:	Gold
Country of Assembly:	Not Available
Country of Diffusion:	Not Available
Country of Origin:	HU
Gender:	Male
Housing Material:	Copper Zinc Alloy
Locking Mechanism:	Screw Locking
Mounting Style:	Cable
Shell Style:	Plug
Shielding:	Shielded
Factory Pack Quantity:	1
Subcategory:	Circular Connectors
Unit Weight:	24 g

Products found:

To show similar products, select at least one checkbox

Select at least one checkbox above to show similar products in this category.

Attributes selected: 0

Filter Document:

Datasheet

1-2823445-1 Datasheet

RoHS Certificate (PDF)

CNHTS:: 8538900000
CAHTS:: 8536690040
USHTS:: 8536694030
JPHTS:: 853669000
KRHTS:: 8536699000
TARIC:: 8536699099
MXHTS:: 8536699999
BRHTS:: 85366990
ECCN:: EAR99

M8/M12 Connector System

TE Connectivity M8/M12 Connector System fills the needs for sensor connection in industrial machinery and factory automation. The M8/M12 standard is also ideal for applications outside of the traditional industries where a compact, reliable connection system with environmental protection is required. The M8/M12 connector system provides a future-proof interface that supports higher-bandwidth needs, meeting the requirements of up to 10GB/s. This TE Connectivity compact and reliable environmentally protected connection system includes signal and terminated cable assemblies of overmolded construction. The single-end terminated cable assemblies feature a choice of PVC or PUR cables in 2 to 10m lengths. The M12 range offers additional options, including screening and LED indication. TE's M8/M12 connector portfolio includes a full range of A, B, C, D, S, T and X-coded (up to 10 Gigabit/s) versions to serve various application needs. The connectors are also available in shielded and unshielded versions, to support Gigabyte Ethernet applications.
Learn More

M12 Rail Certified Cable Connectors

TE Connectivity's (TE) M12 Rail Certified Cable Connectors are cable connectors for field assembly. TE's M12 series reduces service time and boosts cost-effectiveness with easy access to thread grip while reaching up to 10Gb/s connections with a high-speed rugged industrial connection. The M12 connectors are designed for railway and automation industry applications and meet the EN45545 standard. This system provides a solution that safely and reliably helps ensure communication in harsh environments.

M12 PCB-Panel Connectors with 8 & 12 Pins

TE Connectivity's M12 PCB-Panel Connectors with 8 and 12 Pins offer an IP67 rating, a 1.5 to 2.0A rated current, and a 30V_AC/DC voltage rating. M12 PCB-Panel Connectors feature a compact design, plug-and-play mating for easy and fast installation, and are available for 8 and 12 positions. TE Connectivity M12 PCB-Panel Connectors are ideal for machinery, vision systems and automation integration applications and operate within an operating temperature range of -40°C to +85°C.
