747299-2

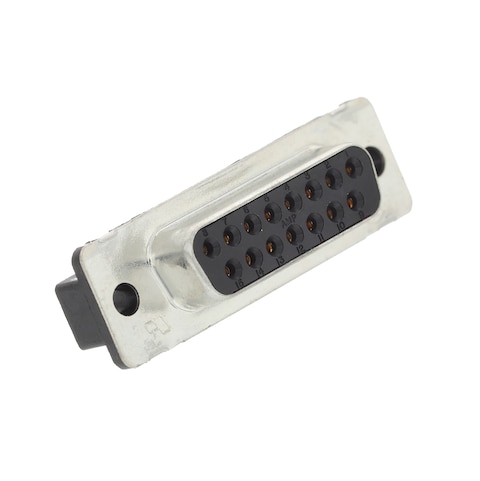

Name: TE Connectivity 747299-2
Brand: TE Connectivity
SKU: 571-7472992
Price: 7.66 USD
Availability: OutOfStock

Images are for reference only
See Product Specifications

Mouser No:

571-7472992

Mfr. No:

747299-2

Mfr.:

TE Connectivity

Description:

D-Sub Standard Connectors RECP FRNT MTL SHL 15 standard mntg holes

Datasheet:

747299-2 Datasheet

ECAD Model:

Download the free Library Loader to convert this file for your ECAD Tool. Learn more about the ECAD Model.

More Information

Learn more about TE Connectivity 747299-2

Availability

Stock:: 0

You can still purchase this product for backorder.

An unexpected error occurred. Please try again later.
Factory Lead Time:: 17 Weeks Estimated factory production time.

Enter Quantity:

Minimum: 1 Multiples: 1

Unit Price:

$-.--

Ext. Price:

$-.--

Est. Tariff:

Pricing (USD)

Qty.	Unit Price	Ext. Price
	$7.66	$7.66
	$6.55	$65.50
	$6.23	$161.98
	$5.93	$308.36
	$5.64	$586.56
	$5.29	$1,375.40
	$5.14	$2,605.98
2,509	Quote

RoHS Version

Mfr.:

TE Connectivity

Mfr. No:

5747299-2

Description:

D-Sub Standard Connectors RECP FRNT MTL SHL 15 standard mntg holes

Compare With Current Part

.hidden-for-nojs { display: none; } .pull-right-nojs { justify-content: flex-end; }

Product Attribute	Attribute Value	Select Attribute
Manufacturer:	TE Connectivity
Product Category:	D-Sub Standard Connectors
RoHS:	No - RoHS Version Available
Number of Positions:	15 Position
Contact Gender:	Without Socket Contacts
Termination Style:	Solder
Mounting Style:	Through Hole
Mounting Angle:	Vertical
Number of Rows:	2 Row
Gender:	Female
Contact Plating:	Gold
Type:	Receptacle
Shell Size:	2 (A)
Shell Material:	Steel
Shell Plating:	Tin
Filtered:	Unfiltered
Series:	HD-20
Packaging:	Tube
Brand:	TE Connectivity
Compliance:	UL
Contact Material:	Phosphor Bronze
Country of Assembly:	Not Available
Country of Diffusion:	Not Available
Country of Origin:	MX
Product Type:	D-Sub Connectors - Standard Density
Factory Pack Quantity:	13
Subcategory:	D-Sub Connectors
Tradename:	AMPLIMITE
Unit Weight:	6.657 g

Products found:

To show similar products, select at least one checkbox

Select at least one checkbox above to show similar products in this category.

Attributes selected: 0

Filter Document:

CNHTS:: 8536901100
CAHTS:: 8536690020
USHTS:: 8536694040
JPHTS:: 853669000
KRHTS:: 8536691000
TARIC:: 8536693000
MXHTS:: 85366999
BRHTS:: 85366990
ECCN:: EAR99

AMPLIMITE D-Subminiature Connectors

TE Connectivity's (TE) AMPLIMITE D-Subminiature Connectors are compact pin and socket connectors designed especially for high-density packages. The D-Subminiature connectors are designed for multiple applications along with specialized accessories that provide a cost-effective solution for complex applications. TE AMPLIMITE Standard D-Subminiature connectors are available with MIL-DTL-24308 qualification.

AMPLIMITE Standard D-Subminiature Connectors

TE Connectivity's (TE) AMPLIMITE Standard D-Subminiature Connectors feature a UL 94V-0 rating, 4 to 40 threaded inserts, and HD-20 and HD-22 availability. AMPLIMITE Standard Connectors have front metal, full metal, and plastic shell features that allow the choice of connectors with suitable durability. TE AMPLIMITE Standard D-Subminiature Connectors have a rugged, easy-to-use design ideal for industrial controls, factory automation, base stations, and consumer electronics.
