776276-1

Name: TE Connectivity 776276-1
Brand: TE Connectivity
SKU: 571-776276-1
Price: 7.21 USD
Availability: OutOfStock

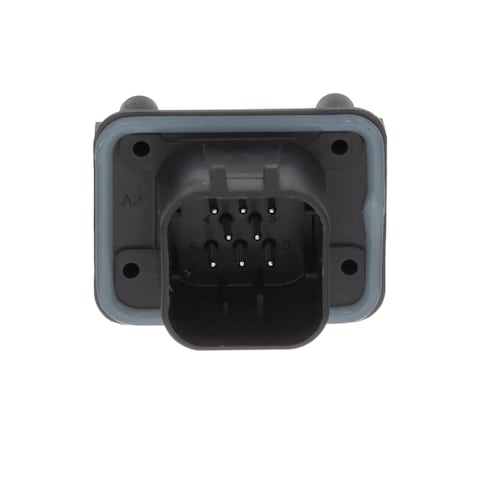

Images are for reference only
See Product Specifications

Mouser No:

571-776276-1

Mfr. No:

776276-1

Mfr.:

TE Connectivity

Description:

Automotive Connectors 8POS AMPSEAL VERT HDR

Datasheet:

776276-1 Datasheet

ECAD Model:

Download the free Library Loader to convert this file for your ECAD Tool. Learn more about the ECAD Model.

More Information

Learn more about TE Connectivity 776276-1

Availability

Stock:: 0

You can still purchase this product for backorder.

An unexpected error occurred. Please try again later.
Factory Lead Time:: 13 Weeks Estimated factory production time for quantities greater than shown.

Enter Quantity:

Minimum: 1 Multiples: 1

Unit Price:

$-.--

Ext. Price:

$-.--

Est. Tariff:

Pricing (USD)

Qty.	Unit Price	Ext. Price
	$7.21	$7.21
	$6.90	$69.00
	$5.26	$131.50
	$5.25	$189.00
	$5.19	$2,615.76
	$4.98	$5,019.84
2,520	Quote

.hidden-for-nojs { display: none; } .pull-right-nojs { justify-content: flex-end; }

Product Attribute	Attribute Value	Select Attribute
Manufacturer:	TE Connectivity
Product Category:	Automotive Connectors
RoHS:
Product:	Headers
Number of Positions:	8 Position
Pitch:	4 mm (0.157 in)
Gender:	Pin (Male)
Mounting Style:	Through Hole
Termination Style:	Solder Pin
Contact Plating:	Tin
Color:	Black
Series:	AMPSEAL
Application:	Power, Signal, Wire-to-Board/Device
Brand:	TE Connectivity
Contact Gender:	Pin (Male)
Contact Material:	Tin
Contact Type:	Pin
Country of Assembly:	Not Available
Country of Diffusion:	Not Available
Country of Origin:	MX
Current Rating:	8 A
Description/Function:	AMPSEAL, Automotive Headers
Flammability Rating:	UL 94 V-0
Height:	34.3 mm
Ingress Protection:	IP67, IP69K
Length:	40.8 mm
Material:	Plastic
Maximum Operating Temperature:	+ 105 C
Minimum Operating Temperature:	- 40 C
Mounting Angle:	Straight
Number of Rows:	3 Row
Product Type:	Automotive Connectors
Factory Pack Quantity:	36
Subcategory:	Automotive Connectors
Voltage Rating:	250 VAC
Width:	32.1 mm
Unit Weight:	14 g

Products found:

To show similar products, select at least one checkbox

Select at least one checkbox above to show similar products in this category.

Attributes selected: 0

Filter Document:

Datasheet

776276-1 Datasheet

EOL

Product Change Notification 2025-01-15 (PDF)

Images

PCN

RoHS Certificate (PDF)

CNHTS:: 8536901100
TARIC:: 8536693000
CAHTS:: 8536690020
USHTS:: 8536694040
JPHTS:: 853669000
KRHTS:: 8536691000
MXHTS:: 85366999
BRHTS:: 85366990
ECCN:: EAR99

AMPSEAL Sealed Connectors

TE Connectivity's (TE) AMPSEAL Connectors provide rugged reliability, easy use, and superior environmental sealing. The connectors include cable plugs and PCB-mount headers engineered to withstand extreme temperatures and moisture, including high-temperature underhood applications. The pre-assembled receptacle housing connector features built-in contact sealing and an integral interfacial seal that protects mated connectors. TE AMPSEAL Connectors applications include driver information, powertrain systems, convenience, safety and security systems, and body and chassis systems.
