85114-1

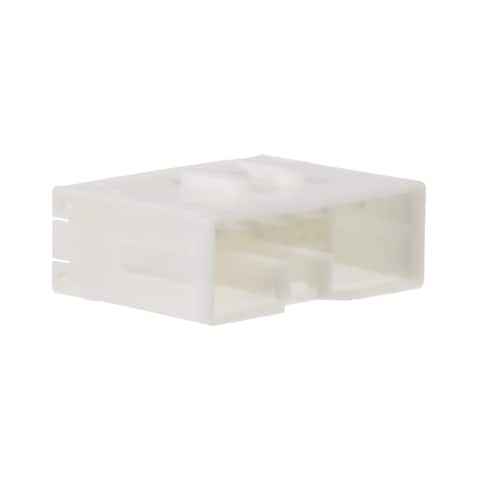

Name: TE Connectivity 85114-1
Brand: TE Connectivity
SKU: 571-85114-1
Price: 1.44 USD
Availability: InStock

Images are for reference only
See Product Specifications

Mouser No:

571-85114-1

Mfr. No:

85114-1

Mfr.:

TE Connectivity

Description:

Automotive Connectors 070/250 HYB 15P CAP

Datasheet:

85114-1 Datasheet

ECAD Model:

Download the free Library Loader to convert this file for your ECAD Tool. Learn more about the ECAD Model.

More Information

Learn more about TE Connectivity 85114-1

In Stock: 362

Stock:: 362 Can Dispatch Immediately

An unexpected error occurred. Please try again later.
Factory Lead Time:: 18 Weeks Estimated factory production time for quantities greater than shown.

Enter Quantity:

Minimum: 1 Multiples: 1

Unit Price:

$-.--

Ext. Price:

$-.--

Est. Tariff:

Pricing (USD)

Qty.	Unit Price	Ext. Price
	$1.44	$1.44
	$1.22	$12.20
	$1.16	$58.00
	$1.09	$109.00
	$0.98	$245.00
	$0.791	$395.50

.hidden-for-nojs { display: none; } .pull-right-nojs { justify-content: flex-end; }

Product Attribute	Attribute Value	Select Attribute
Manufacturer:	TE Connectivity
Product Category:	Automotive Connectors
RoHS:
Product:	Housings
Number of Positions:	15 Position
Gender:	Receptacle (Female)
Mounting Style:	Cable Mount / Free Hanging
Termination Style:	Crimp
Wire Gauge Max:	22 AWG
Color:	White
Series:	.025
Application:	Wire to Wire
Brand:	TE Connectivity
Contact Gender:	Without Socket Contacts
Country of Assembly:	Not Available
Country of Diffusion:	Not Available
Country of Origin:	KR
Height:	16.6 mm
Housing Material:	Polybutylene Terephthalate (PBT)
Length:	46.6 mm
Number of Rows:	2 Row
Product Type:	Automotive Connectors
Row Spacing:	5.2 mm
Factory Pack Quantity:	50
Subcategory:	Automotive Connectors
Tradename:	MULTILOCK
Width:	16.6 mm
Unit Weight:	14.040 g

Products found:

To show similar products, select at least one checkbox

Select at least one checkbox above to show similar products in this category.

Attributes selected: 0

Filter Document:

Datasheet

85114-1 Datasheet

Images

PCN

RoHS Certificate (PDF)

CNHTS:: 8538900000
CAHTS:: 8538903900
USHTS:: 8538906000
JPHTS:: 853890000
TARIC:: 8538909999
BRHTS:: 85389090
ECCN:: EAR99

.025 MULTILOCK Connectors

TE Connectivity's (TE) .025 MULTILOCK Connectors are designed for electronic control units and downsized wire harnesses. These high-density connectors are built to resist the deformation of contacts by scooping at mating and unmating. The connectors contain sidelocks to prevent the half-mating of connector halves and increase the connector retention force. The low-insertion force contacts are optimized to tolerate fretting corrosion. TE .025 MULTILOCK Connectors are ideal for automotive applications.
