8000078356

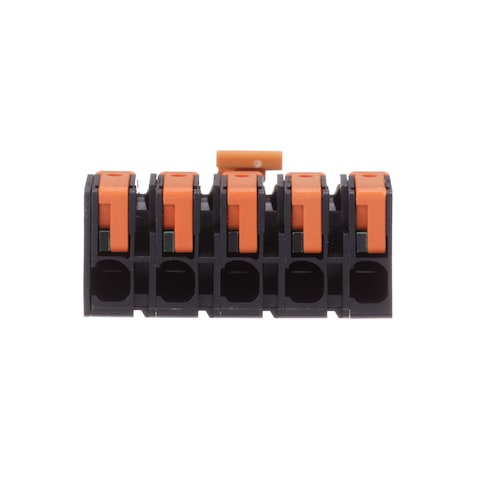

Name: Weidmuller 8000078356
Brand: Weidmuller
SKU: 470-8000078356
Price: 9.21 USD
Availability: InStock

Images are for reference only
See Product Specifications

Mouser No:

470-8000078356

Mfr. No:

8000078356

Mfr.:

Weidmuller

Description:

Pluggable Terminal Blocks MPS 7S/05 S F3 TN B B

Datasheet:

8000078356 Datasheet (PDF)

ECAD Model:

Download the free Library Loader to convert this file for your ECAD Tool. Learn more about the ECAD Model.

More Information

Learn more about Weidmuller 8000078356

In Stock: 408

Stock:: 408 Can Dispatch Immediately

An unexpected error occurred. Please try again later.
Factory Lead Time:: 8 Weeks Estimated factory production time for quantities greater than shown.

Enter Quantity:

Minimum: 1 Multiples: 1

Unit Price:

$-.--

Ext. Price:

$-.--

Est. Tariff:

Pricing (USD)

Qty.	Unit Price	Ext. Price
	$9.21	$9.21
	$7.04	$70.40
	$6.72	$168.00
	$4.92	$236.16
	$4.91	$471.36
	$4.47	$2,360.16

.hidden-for-nojs { display: none; } .pull-right-nojs { justify-content: flex-end; }

Product Attribute	Attribute Value	Select Attribute
Manufacturer:	Weidmuller
Product Category:	Pluggable Terminal Blocks
RoHS:
Product:	Receptacles
Number of Positions:	5 Position
Pitch:	7.5 mm
Connection Method:	Plug-in
Termination Style:	Spring Clamp
Mounting Style:	Panel Mount
Current Rating:	34.6 A
Voltage Rating:	1 kV
Wire Gauge Min:	20 AWG
Wire Gauge Max:	12 AWG
Color:	Black
Series:	Omnimate 4.0 MPS
Brand:	Weidmuller
Contact Material:	Copper Alloy
Contact Plating:	Tin
Country of Assembly:	Not Available
Country of Diffusion:	Not Available
Country of Origin:	DE
Flammability Rating:	UL 94 V-0
Height:	17.5 mm
Housing Material:	Polybutylene Terephthalate (PBT)
Length:	34.95 mm
Product Type:	Pluggable Terminal Blocks
Factory Pack Quantity:	48
Subcategory:	Terminal Blocks
Tradename:	Omnimate
Width:	35.8 mm

Products found:

To show similar products, select at least one checkbox

Select at least one checkbox above to show similar products in this category.

Attributes selected: 0

Filter Document:

Datasheet

8000078356 Datasheet (PDF)

This functionality requires JavaScript to be enabled.

CNHTS:: 8536909000
CAHTS:: 8536690090
USHTS:: 8536698000
JPHTS:: 853669000
KRHTS:: 8536699000
BRHTS:: 85366990
ECCN:: EAR99

OMNIMATE® 4.0 Pluggable Terminal Blocks

Weidmuller OMNIMATE^® 4.0 Pluggable Terminal Blocks are an efficient solution for continuous, digitalized device development. The Weidmuller OMNIMATE 4.0 combines super-fast wire connection technology, modular product design, and fast delivery. SNAP IN connection technology allows even flexible conductors without ferrules to be connected easily without tools. An indicator signals a secure connection both acoustically and visually.
