71144021

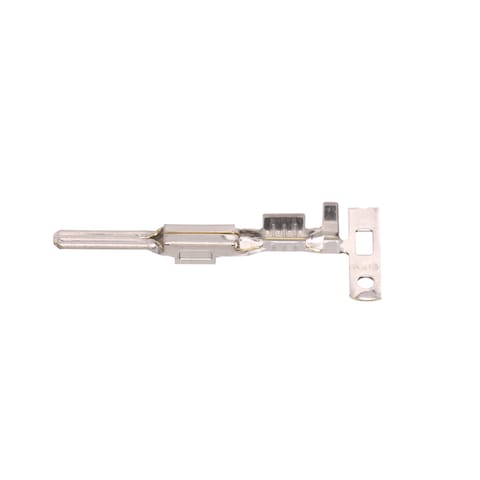

Name: Yazaki 71144021
Brand: Yazaki
SKU: 272-71144021
Price: 0.1 USD
Availability: InStock

Images are for reference only
See Product Specifications

Mouser No:

272-71144021

Mfr. No:

71144021

Mfr.:

Yazaki

Description:

Automotive Connectors TERM 090 II M 2.3MM UNSLD

Datasheet:

71144021 Datasheet (PDF)

ECAD Model:

Download the free Library Loader to convert this file for your ECAD Tool. Learn more about the ECAD Model.

More Information

Learn more about Yazaki 71144021

In Stock: 48,363

Stock:: 48,363 Can Dispatch Immediately

An unexpected error occurred. Please try again later.
Factory Lead Time:: 7 Weeks Estimated factory production time for quantities greater than shown.

Enter Quantity:

Minimum: 1 Multiples: 1

Unit Price:

$-.--

Ext. Price:

$-.--

Est. Tariff:

Pricing (USD)

Qty.	Unit Price	Ext. Price
	$0.10	$0.10
	$0.053	$1.33
	$0.051	$2.55
	$0.049	$4.90
	$0.044	$22.00
	$0.042	$42.00
	$0.038	$95.00
Full Reel (Order in multiples of 6000)
	$0.037	$222.00

.hidden-for-nojs { display: none; } .pull-right-nojs { justify-content: flex-end; }

Product Attribute	Attribute Value	Select Attribute
Manufacturer:	Yazaki
Product Category:	Automotive Connectors
RoHS:
Product:	Terminals
Gender:	Pin (Male)
Mounting Style:	Cable Mount / Free Hanging
Termination Style:	Crimp
Contact Plating:	Tin
Packaging:	Reel
Packaging:	Cut Tape
Application:	Wire-to-Wire
Brand:	Yazaki
Contact Gender:	Pin (Male)
Country of Assembly:	Not Available
Country of Diffusion:	Not Available
Country of Origin:	US
Product Type:	Automotive Connectors
Factory Pack Quantity:	6000
Subcategory:	Automotive Connectors
Part # Aliases:	7114-4021

Products found:

To show similar products, select at least one checkbox

Select at least one checkbox above to show similar products in this category.

Attributes selected: 0

Filter Document:

Datasheet

71144021 Datasheet (PDF)

CNHTS:: 8536901100
USHTS:: 8536904000
TARIC:: 8536699099
ECCN:: EAR99

2.3II Series Connectors

Yazaki 2.3II Series Connectors offer PBT housing, a 10A current capacity, and 3mΩ resistance at low voltage. These connectors feature a double terminal locking system that eliminates terminal push-pull and cannot be mated if the preset terminal spacer is not in the full-lock position. The PBT housing has internal lances and front holders for secure terminal positioning, and the tab width of the male terminal is 2.3mm. Yazaki 2.3II Series Connectors are compact and used in various automotive applications.
