7114410002

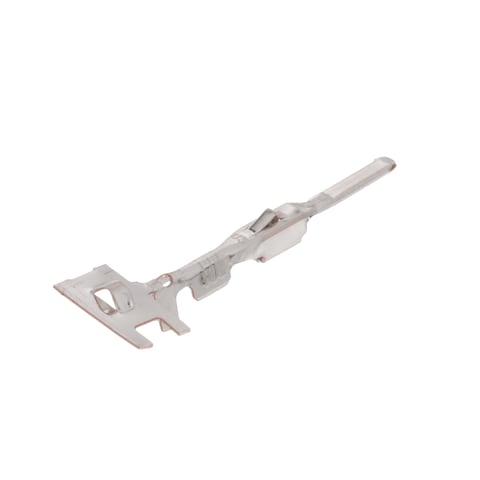

Name: Yazaki 7114410002
Brand: Yazaki
SKU: 272-7114410002
Price: 0.12 USD
Availability: InStock

Images are for reference only
See Product Specifications

Mouser No:

272-7114410002

Mfr. No:

7114410002

Mfr.:

Yazaki

Description:

Automotive Connectors TERM YESC M 1.5MM UNSLD

Datasheet:

7114410002 Datasheet (PDF)

ECAD Model:

Download the free Library Loader to convert this file for your ECAD Tool. Learn more about the ECAD Model.

More Information

Learn more about Yazaki 7114410002

In Stock: 97,983

Stock:: 97,983 Can Dispatch Immediately

An unexpected error occurred. Please try again later.
Factory Lead Time:: 8 Weeks Estimated factory production time for quantities greater than shown.

Enter Quantity:

Minimum: 1 Multiples: 1

Unit Price:

$-.--

Ext. Price:

$-.--

Est. Tariff:

Pricing (USD)

Qty.	Unit Price	Ext. Price
	$0.12	$0.12
	$0.066	$1.65
	$0.064	$3.20
	$0.061	$6.10
	$0.055	$27.50
	$0.053	$53.00
	$0.048	$120.00
Full Reel (Order in multiples of 7000)
	$0.038	$266.00
	$0.036	$504.00

.hidden-for-nojs { display: none; } .pull-right-nojs { justify-content: flex-end; }

Product Attribute	Attribute Value	Select Attribute
Manufacturer:	Yazaki
Product Category:	Automotive Connectors
RoHS:
Product:	Terminals
Pitch:	1.5 mm (0.059 in)
Gender:	Pin (Male)
Mounting Style:	Cable Mount / Free Hanging
Termination Style:	Crimp
Contact Plating:	Tin
Packaging:	Reel
Packaging:	Cut Tape
Application:	Wire-to-Wire
Brand:	Yazaki
Contact Gender:	Pin (Male)
Country of Assembly:	Not Available
Country of Diffusion:	Not Available
Country of Origin:	US
Product Type:	Automotive Connectors
Factory Pack Quantity:	7000
Subcategory:	Automotive Connectors
Part # Aliases:	7114-4100-02

Products found:

To show similar products, select at least one checkbox

Select at least one checkbox above to show similar products in this category.

Attributes selected: 0

Filter Document:

Datasheet

7114410002 Datasheet (PDF)

CNHTS:: 8536901100
USHTS:: 8536904000
TARIC:: 8536699099
ECCN:: EAR99

1.5 Series Connectors

Yazaki 1.5 Series Connectors feature a tab width of 1.5mm for the male terminal and a covering size of 0.3mm² to 1.25mm². The 1.5 Series connectors are available in sealed and unsealed options and the housing has internal laces and spacers for secure terminal positioning. These connectors have a lance locking system for stable and secure mating action between male and female terminals. Yazaki 1.5 Series Connectors offer 500V_DC insolation resistance, 1000V_AC dielectric resistance, and 6.50mm vertical terminal pitch.
