72831010

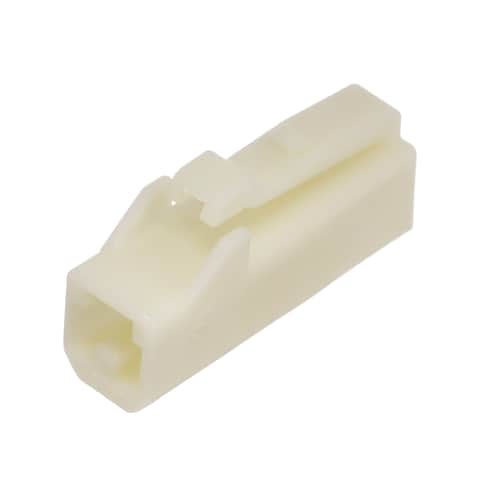

Name: Yazaki 72831010
Brand: Yazaki
SKU: 272-72831010
Price: 1.08 USD
Availability: InStock

Images are for reference only
See Product Specifications

Mouser No:

272-72831010

Mfr. No:

72831010

Mfr.:

Yazaki

Description:

Automotive Connectors CONN 1P 090 II NAT

Datasheet:

72831010 Datasheet (PDF)

ECAD Model:

Download the free Library Loader to convert this file for your ECAD Tool. Learn more about the ECAD Model.

More Information

Learn more about Yazaki 72831010

In Stock: 2,172

Stock:: 2,172 Can Dispatch Immediately

An unexpected error occurred. Please try again later.
Factory Lead Time:: 16 Weeks Estimated factory production time for quantities greater than shown.

Enter Quantity:

Minimum: 1 Multiples: 1

Unit Price:

$-.--

Ext. Price:

$-.--

Est. Tariff:

Pricing (USD)

Qty.	Unit Price	Ext. Price
	$1.08	$1.08
	$0.634	$15.85
	$0.609	$30.45
	$0.586	$58.60
	$0.527	$263.50
	$0.509	$509.00
	$0.467	$1,167.50
	$0.396	$1,980.00
	$0.394	$3,940.00

.hidden-for-nojs { display: none; } .pull-right-nojs { justify-content: flex-end; }

Product Attribute	Attribute Value	Select Attribute
Manufacturer:	Yazaki
Product Category:	Automotive Connectors
RoHS:
Product:	Housings
Number of Positions:	1 Position
Gender:	Receptacle (Female)
Mounting Style:	Cable Mount / Free Hanging
Termination Style:	Press Fit
Color:	Natural
Application:	Wire-to-Wire, Wire-to-Board, Wire-to-Device
Brand:	Yazaki
Country of Assembly:	Not Available
Country of Diffusion:	Not Available
Country of Origin:	CN
Maximum Operating Temperature:	+ 80 C
Minimum Operating Temperature:	- 30 C
Product Type:	Automotive Connectors
Factory Pack Quantity:	5000
Subcategory:	Automotive Connectors
Type:	Receptacle Housing
Part # Aliases:	7283-1010

Products found:

To show similar products, select at least one checkbox

Select at least one checkbox above to show similar products in this category.

Attributes selected: 0

Filter Document:

Datasheet

72831010 Datasheet (PDF)

USHTS:: 8538906000
ECCN:: EAR99

2.3II Series Connectors

Yazaki 2.3II Series Connectors offer PBT housing, a 10A current capacity, and 3mΩ resistance at low voltage. These connectors feature a double terminal locking system that eliminates terminal push-pull and cannot be mated if the preset terminal spacer is not in the full-lock position. The PBT housing has internal lances and front holders for secure terminal positioning, and the tab width of the male terminal is 2.3mm. Yazaki 2.3II Series Connectors are compact and used in various automotive applications.
