72835830

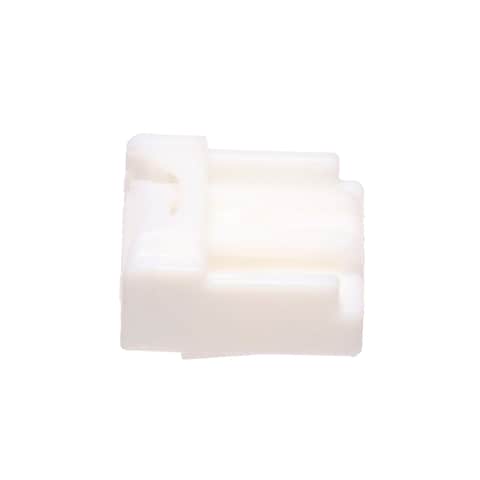

Name: Yazaki 72835830
Brand: Yazaki
SKU: 272-72835830
Price: 2.47 USD
Availability: InStock

Images are for reference only
See Product Specifications

Mouser No:

272-72835830

Mfr. No:

72835830

Mfr.:

Yazaki

Description:

Automotive Connectors CONN 5P 040 III NAT

Datasheet:

72835830 Datasheet (PDF)

ECAD Model:

Download the free Library Loader to convert this file for your ECAD Tool. Learn more about the ECAD Model.

More Information

Learn more about Yazaki 72835830

In Stock: 2,066

Stock:: 2,066 Can Dispatch Immediately

An unexpected error occurred. Please try again later.
Factory Lead Time:: 10 Weeks Estimated factory production time for quantities greater than shown.

Enter Quantity:

Minimum: 1 Multiples: 1

Unit Price:

$-.--

Ext. Price:

$-.--

Est. Tariff:

Pricing (USD)

Qty.	Unit Price	Ext. Price
	$2.47	$2.47
	$1.46	$36.50
	$1.40	$70.00
	$1.35	$135.00
	$1.21	$605.00
	$1.17	$1,170.00
	$0.841	$2,270.70
	$0.822	$4,438.80
	$0.806	$8,704.80

.hidden-for-nojs { display: none; } .pull-right-nojs { justify-content: flex-end; }

Product Attribute	Attribute Value	Select Attribute
Manufacturer:	Yazaki
Product Category:	Automotive Connectors
RoHS:
Product:	Housings
Number of Positions:	5 Position
Gender:	Receptacle (Female)
Mounting Style:	Cable Mount / Free Hanging
Termination Style:	Press Fit
Color:	Natural
Application:	Wire-to-Wire, Wire-to-Board, Wire-to-Device
Brand:	Yazaki
Country of Assembly:	Not Available
Country of Diffusion:	Not Available
Country of Origin:	MX
Maximum Operating Temperature:	+ 80 C
Minimum Operating Temperature:	- 30 C
Product Type:	Automotive Connectors
Factory Pack Quantity:	2700
Subcategory:	Automotive Connectors
Type:	Receptacle Housing
Part # Aliases:	7283-5830

Products found:

To show similar products, select at least one checkbox

Select at least one checkbox above to show similar products in this category.

Attributes selected: 0

Filter Document:

Datasheet

72835830 Datasheet (PDF)

CNHTS:: 8547200000
USHTS:: 8538906000
TARIC:: 8547200000
ECCN:: EAR99

1.0 Series Connectors

Yazaki 1.0 Series Connectors feature a compact size with tab widths of 1.0mm for the male terminals and a covering wire size of 0.3mm² to 5.0mm². The terminals have a tangle-less concept, a clean body, and are available in crimping and IDC versions. Yazaki 1.0 Series Connectors cannot be mated if the preset terminal spacer is not in the full-lock position. The connectors also feature a double terminal locking system that eliminates terminal push-out.
