Abracon AETC LTE 4G/5G & Wi-Fi® 6E Whip Antennas

Abracon AETC LTE 4G/5G and Wi-Fi® 6E Whip Antennas are low profile and offer up to 80% efficiency with peak gain. These antennas support the 617MHz to 7150MHz operating frequency range and SMA or RP-SMA connectors. The AETC whip antennas feature ≤1.67 Voltage Standing Wave Ratio (VSWR), 50Ω impedance, and Omni-directional radiation pattern (Azimuth). Typical applications include IoT, BLUETOOTH®/ZigBee®/single-band Wi-Fi/WLAN, 2.4GHz audio applications, and smart homes/smart buildings.

Features

  • Low profile
  • 617MHz to 7150MHz operating frequency range
  • ≤1.67 Voltage Standing Wave Ratio (VSWR)
  • SMA or RP-SMA connectors
  • Up to 80% efficiency (AETC01M02X, AETC1302X, and AETC2002X)
  • 5dBi peak gain (AETC01M02X, AETC1302X, and AETC2002X)
  • AETC2303X:
    • 3.0dBi peak gain
    • High efficiency
    • Easy installation with a built-in connector
    • Customizable connector options

Specifications

  • 50Ω impedance
  • Omni-directional radiation pattern (Azimuth)
  • Whip antenna type
  • ROHS complaint

Applications

  • Internet of Things (IoT) devices
  • BLUETOOTH/ZigBee/single-band Wi-Fi/WLAN
  • 2.4GHz audio devices
  • BLUETOOTH AoA/AoD
  • Smart home and building
  • AETC2303X:
    • Machine-to-Machine (M2M)
    • 5G and Ultra Wideband(UWB)
    • 4G/LTE and 2G/3G/4G radios
    • Gateways and routers
    • Security/remote monitoring

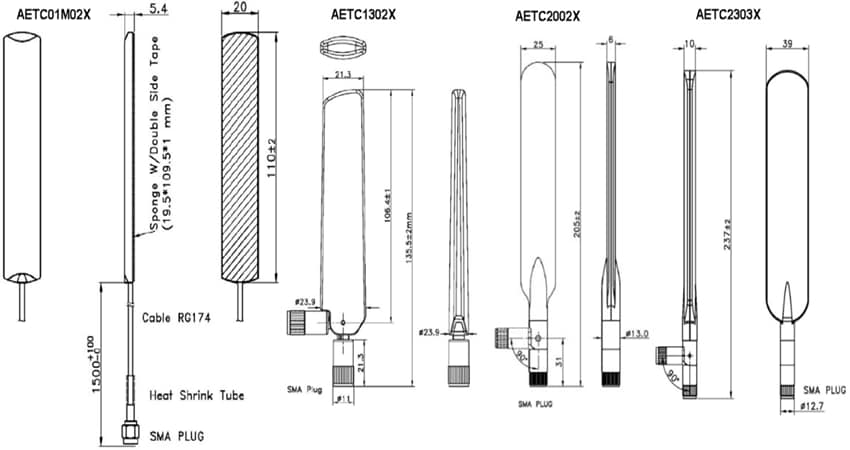

Dimension Diagram (mm)

Mechanical Drawing - Abracon AETC LTE 4G/5G & Wi-Fi® 6E Whip Antennas
Published: 2023-01-10 | Updated: 2023-08-14
