Renesas Electronics 55xS Low Skew 1 to 4 Clock Buffers
Renesas Electronics 55xS Low Skew 1 to 4 Clock Buffers are low skew, a single high-speed input to four output clock buffers. These devices feature an additive phase jitter of sub 50fs and input/output clock frequency up to 200MHz, making them ideal for networking clocks. Renesas Electronics 55xS Low Skew 1 to 4 Clock Buffers are offered in an 8-pin SOIC or 8-pin DFN package and have an extended temperature range of -40°C to +105°C.
Features
- 50fs low additive phase jitter RMS
- Extremely low skew outputs (50ps)
- Packaged in 8-pin SOIC or small 8-pin DFN
- Input/output clock frequency up to 200MHz
- Ideal for networking clocks
- 1.8V to 3.3V operating voltages
- Output enable mode tri-states outputs
- Advanced, low-power CMOS process
- -40°C to +105°C temperature range
- Pb free

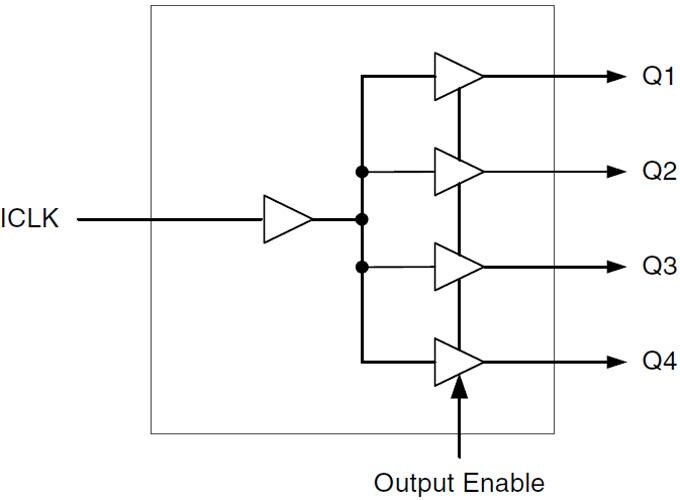

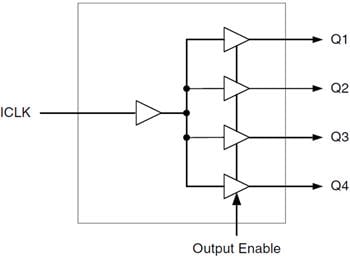

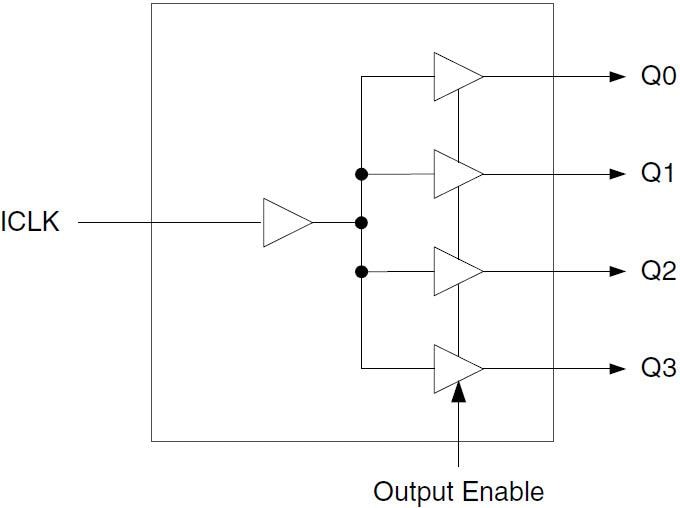

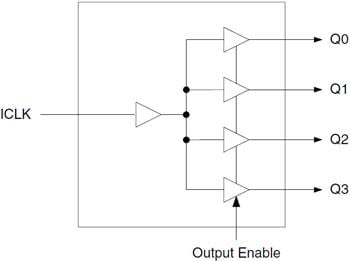

Block Diagrams
