Toshiba TB67B000AHG 3-Phase Brushless Motor Driver
Toshiba TB67B000AHG 3-Phase Brushless Motor Driver integrates a high-voltage PWM brushless motor driver and controller that supports sine-wave PWM drive and wide-angle commutation. This driver features a built-in oscillator circuit, bootstrap diode, over-current protection, thermal shutdown, under-voltage lockout, and motor-lock detection. Toshiba TB67B000AHG 3-phase driver is designed to change the speed of a brushless motor directly by using a speed control analog signal from a microcontroller.
Features
- High-voltage PWM brushless motor driver
- Integrates a controller that supports sine-wave PWM driver and wide-angle commutation and a high-voltage driver in a single package (MCP)
- IGBTs are arranged in three-phase bridge unit
- Built-in bootstrap diode functions as the bootstrap circuity
- Features over-current protection, thermal shutdown, undervoltage lockout, and motor-lock detection
Specifications
- Built-in oscillator circuit with a 252Hz carrier frequency
- Internal voltage regular circuit, 5V (typical) VREG, 30mA (max), Vrefout+5V (typical), 35mA (max)
- 13.5V to 16.5V operating power supply voltage range
- 50V to 450V motor power supply operating voltage range

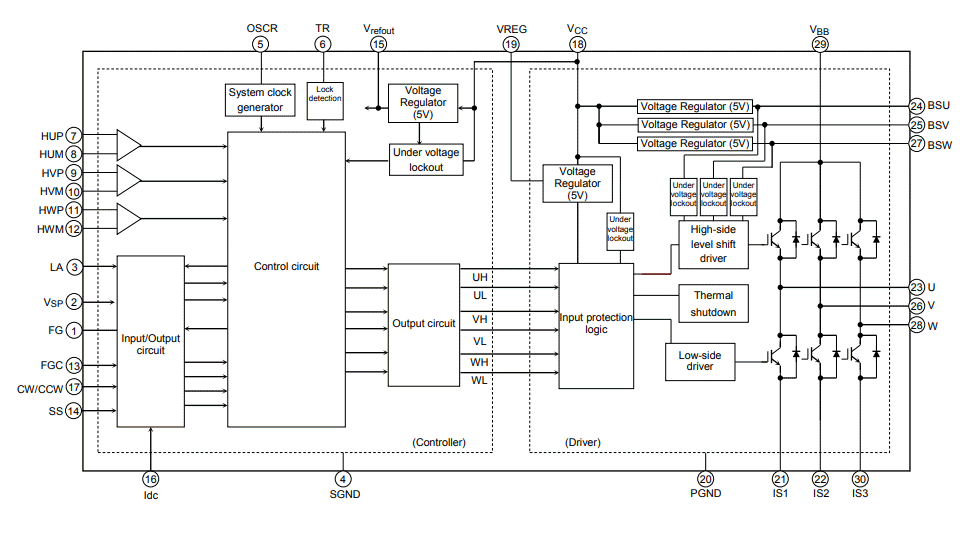

Block Diagram

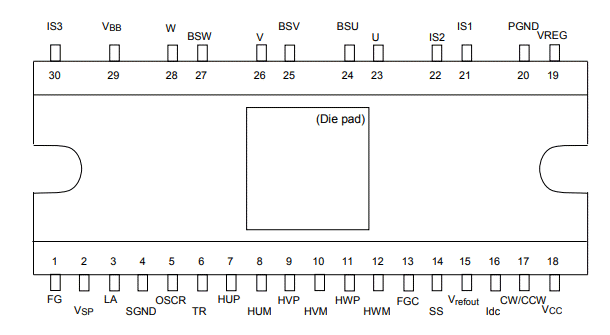

Pin Diagram
