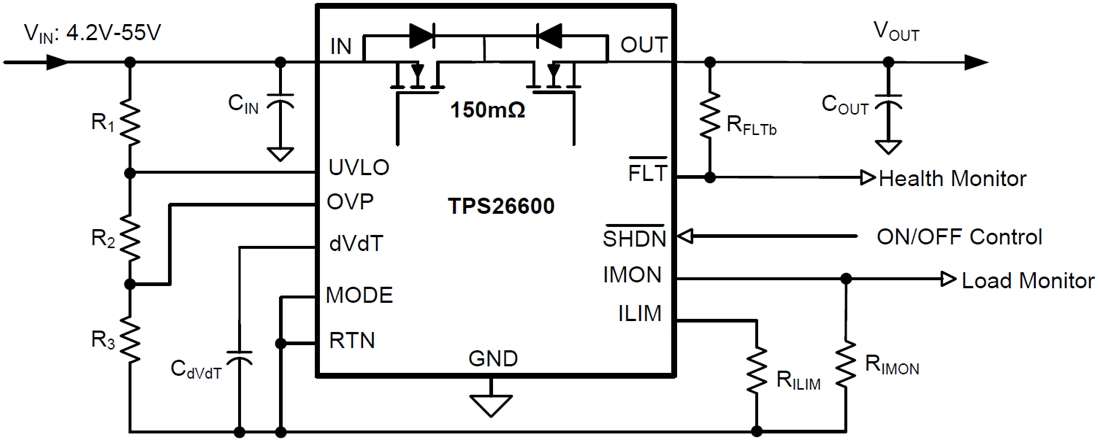

Texas Instruments TPS2660x 60V 2A Industrial eFuse is a compact, feature-rich high voltage eFuse with a full suite of protection features. The wide supply input range of 4.2 to 55V allows control of many popular DC bus voltages. Each device can withstand and protect the loads from positive and negative supply voltages up to ± 60V. The integrated back-to-back FETs provide reverse current blocking. This feature makes the device suitable for systems with output voltage holdup requirements during power fail and brownout conditions. Load, source, and device protection are provided with many adjustable features, including over current, output slew rate, and over-voltage, under-voltage thresholds. The internal robust protection control blocks and the high voltage rating of the Texas Instruments TPS2660x help simplify the system designs for surge protection.
Features
4.2V to 55V operating voltage, 60V ABS max
Integrated reverse input polarity protection down to –60V
Zero additional components required
Integrated back to back MOSFETs with 150mΩ total RON
0.1A to 2.23A adjustable current limit (±5% accuracy at 1A)
Load protection during a surge (IEC 61000-4-5) with minimum external components
IMON current indicator output (±8.5% accuracy)
Low quiescent current, 300µA in operating, 20µA in shutdown
Adjustable UVLO, OVP cut off, output slew rate control
Reverse current blocking
Fixed 38V over-voltage clamp (TPS26602 only)
Available in easy-to-use 16-pin HTSSOP and 24-pin VQFN packages
